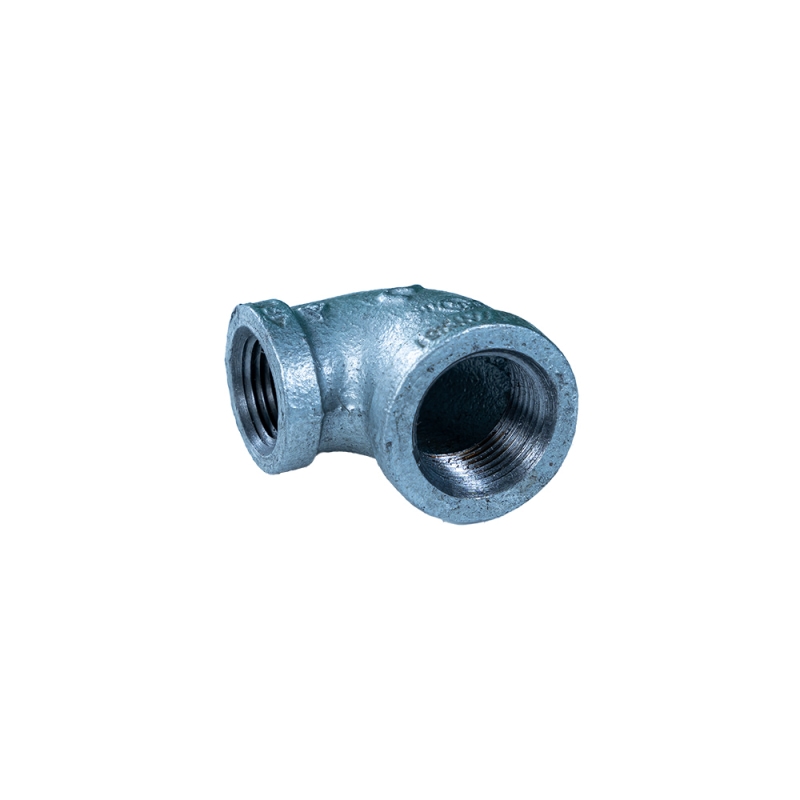

El codo reductor de 90° de hierro fundido maleable se utiliza para conectar dos tuberías de diferentes tamaños mediante una conexión roscada, permitiendo que la tubería gire 90 grados y cambie la dirección del flujo del fluido. Los codos reductores se utilizan comúnmente en sistemas de plomería y calefacción residenciales, comerciales e industriales.
|
Artículo |
Tamaño (pulgadas) |
Dimensiones |
Cantidad de cajas |
Caso especial |
Peso |
|||
|
Número |

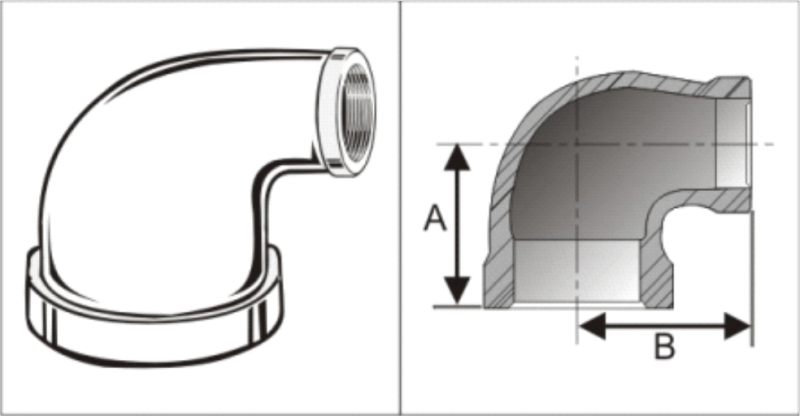

A | B |
Maestro |
Interno |
Maestro |
Interno |
(Gramo) |
|
| REL0201 | 1/4 X 1/8 | 18.8 | 19.3 |
480 |
40 |
480 |
40 |
42.1 |
| REL0301 | 3/8 X 1/8 | 20.5 | 21.6 |
480 |
80 |
420 |
105 |
49 |
| REL0302 | 3/8 X 1/4 | 22.4 | 22.9 |
400 |
50 |
360 |
90 |
66.7 |
| REL0501 | 1/2 X 1/8 | 26.4 | 26.2 |
400 |
50 |
240 |
60 |
69 |
| REL0502 | 1/2 X 1/4 | 24.6 | 24.9 |
320 |
80 |
240 |
60 |
84 |
| REL0503 | 1/2 X 3/8 | 26.4 | 26.2 |
240 |
60 |
240 |
60 |
101.4 |
| REL0701 | 3/4 X 1/8 | 26.2 | 25.7 |
240 |
60 |
160 |
40 |
104.9 |
| REL0702 | 3/4 X 1/4 | 26.7 | 27.4 |
200 |
50 |
160 |
40 |
123.3 |
| REL0703 | 3/4 X 3/8 | 28.5 | 28.7 |
200 |
50 |
160 |
40 |
126.7 |
| REL0705 | 3/4 X 1/2 | 30.5 | 31.0 |
180 |
30 |
160 |
40 |
140 |
| REL1002 | 1 X 1/4 | 30.0 | 32.0 |
150 |
25 |
150 |
25 |
139 |
| REL1003 | 1 X 3/8 | 30.0 | 32.3 |
150 |
25 |
150 |
25 |
180 |
| REL1005 | 1 X 1/2 | 32.0 | 35.5 |
120 |
30 |
100 |
25 |
216.3 |
| REL1007 | 1 X 3/4 | 34.8 | 36.8 |
120 |
30 |
100 |
50 |
223 |
| REL1205 | 1-1/4 X 1/2 | 34.0 | 38.9 |
100 |
25 |
80 |
20 |
273 |
| REL1207 | 1-1/4 X 3/4 | 36.8 | 41.2 |
80 |
20 |
60 |
15 |
312 |
| REL1210 | 1-1/4 X 1 | 40.1 | 42.4 |
60 |
10 |
40 |
10 |
363 |
| REL1505 | 1-1/2 X 1/2 | 35.0 | 42.0 |
80 |
20 |
60 |
15 |
338.3 |
| REL1507 | 1-1/2 X 3/4 | 38.6 | 44.5 |
60 |
20 |
40 |
10 |
418.3 |
| REL1510 | 1-1/2 X 1 | 41.9 | 45.7 |
60 |
20 |
40 |
10 |
445 |
| REL1512 | 1-1/2 X 1-1/4 | 46.2 | 47.8 |
48 |
12 |
30 |
15 |
521.5 |
| REL2005 | 2 X 1/2 | 37.6 | 47.5 |
48 |
12 |
40 |
10 |
481.7 |
| REL2007 | 2 X 3/4 | 40.6 | 50.0 |
48 |
12 |
36 |
9 |
560 |
| REL2010 | 2 X 1 | 43.9 | 51.3 |
48 |
12 |
28 |
14 |
532.5 |
| REL2012 | 2 X 1-1/4 | 48.3 | 53.3 |
36 |
12 |
20 |
10 |
715.8 |
| REL2015 | 2 X 1-1/2 | 51.3 | 54.9 |
36 |
12 |
20 |
10 |
756 |
| REL2505 | 2-1/2 X 1/2 | 45.0 | 60.0 |
30 |
15 |
15 |
5 |
780 |
| REL2507 | 2-1/2 X 3/4 | 48.0 | 60.0 |
30 |
15 |
30 |
15 |
880 |
| REL2510 | 2-1/2 X 1 | 55.0 | 63.0 |
28 |
14 |
30 |
15 |
950 |
| REL2512 | 2-1/2 X 1-1/4 | 51.8 | 62.3 |
20 |
10 |
16 |
8 |
1080 |
| REL2515 | 2-1/2 X 1-1/2 | 54.9 | 63.8 |
20 |
10 |
12 |
6 |
1195 |
| REL2520 | 2-1/2 X 2 | 60.7 | 66.0 |
20 |
10 |
12 |
6 |
1270 |
| REL3010 | 3 X 1 | 50.5 | 67.6 |
18 |
6 |
20 |
10 |
1440 |
| REL3012 | 3 X 1-1/4 | 54.9 | 69.6 |
20 |
10 |
20 |
10 |
1360 |
| REL3015 | 3 X 1-1/2 | 58.0 | 71.0 |
18 |
9 |
8 |
4 |
1445 |
| REL3020 | 3 X 2 | 64.0 | 73.4 |
16 |
4 |
8 |
4 |
1724 |
| REL3025 | 3 X 2-1/2 | 71.9 | 75.9 |
12 |
6 |
8 |
4 |
2155.7 |
| REL4020 | 4 X 2 | 69.1 | 87.5 |
6 |
3 |
4 |
2 |
2289 |
| REL4025 | 4 X 2-1/2 | 77.2 | 89.1 |
8 |
4 |
4 |
2 |
2683 |
| REL4030 | 4 X 3 | 83.8 | 81.4 |
9 |
3 |
4 |
2 |
3075 |
| Material: Hierro maleable |
| Tipo: Codo 90 Forma: Reducir |
| Lugar de origen: Hebei, China |
| Marca: P |
| Material: ASTM A197 |
| estándar: NPT, BSP |
| Tamaño: 1/4"-4" |
| Recubrimiento de zinc: SI 918, ASTM A 153 |

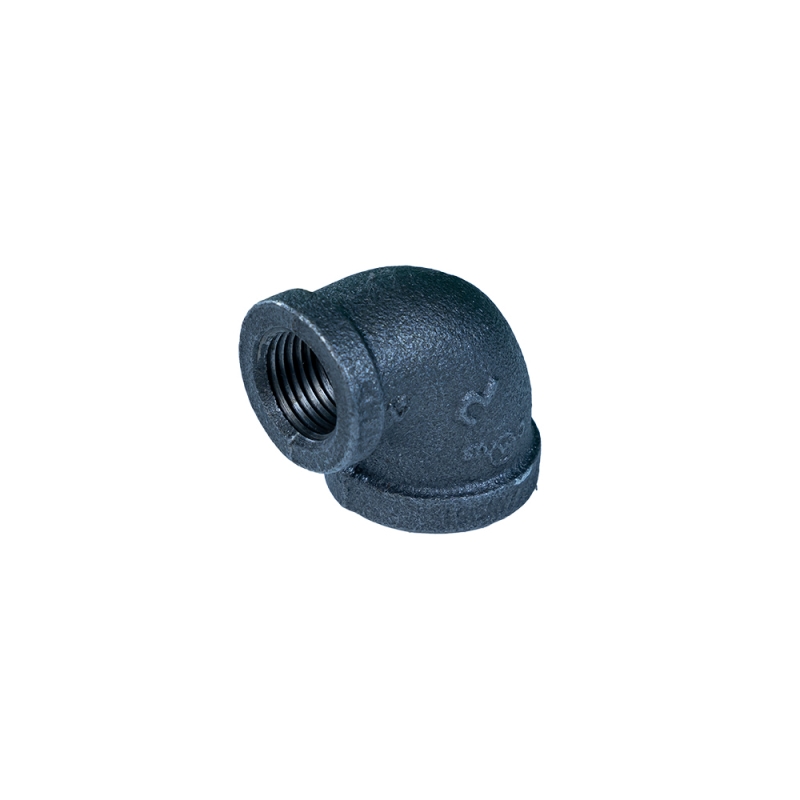

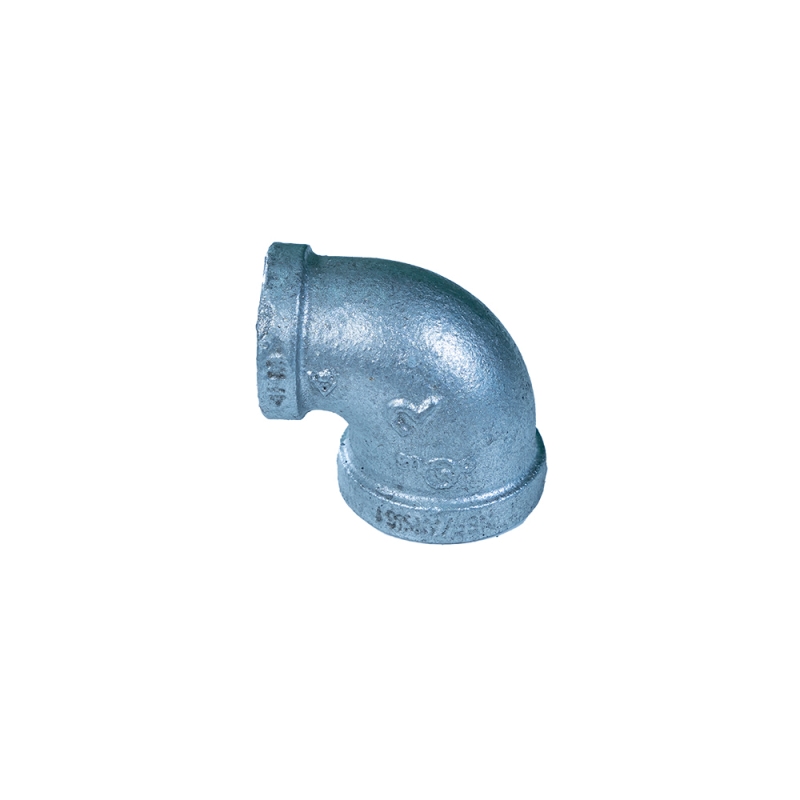

| Superficie: Negra; Galvanizada en caliente; Electro |
| Detalles del embalaje
1. Cajas de cartón sin palets 2. Cajas de cartón con palets Plazo de entrega: Cantidad (piezas) 1 - 10000 >10000 Plazo de entrega (días) 20 A negociar
|
