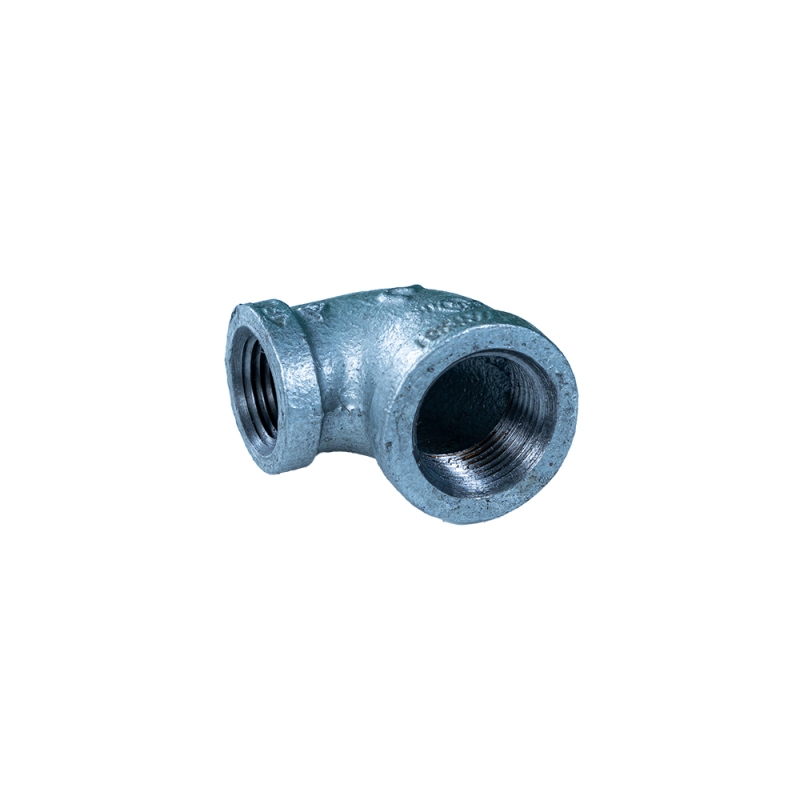

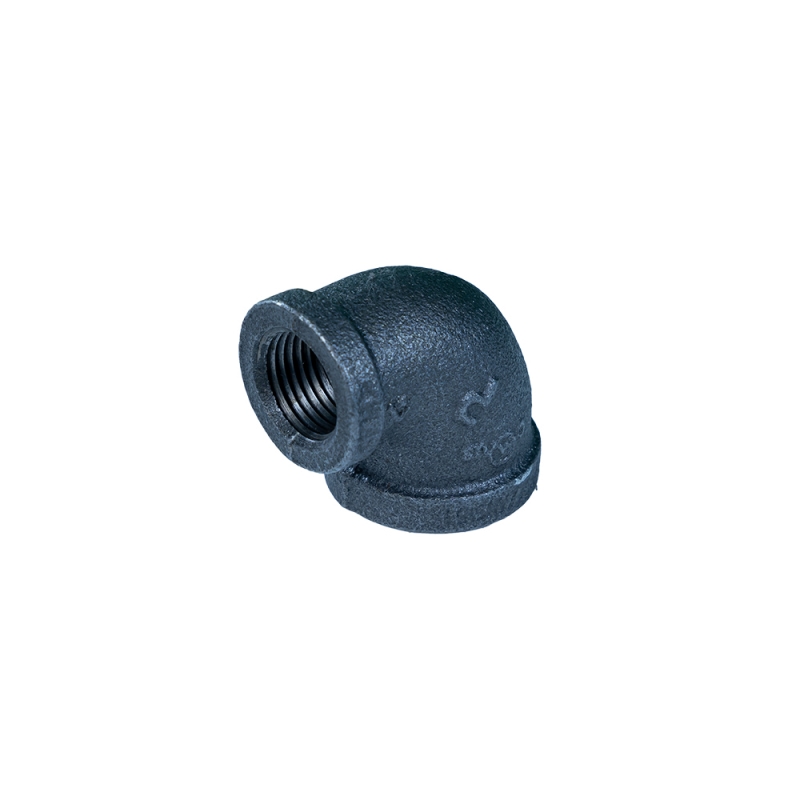

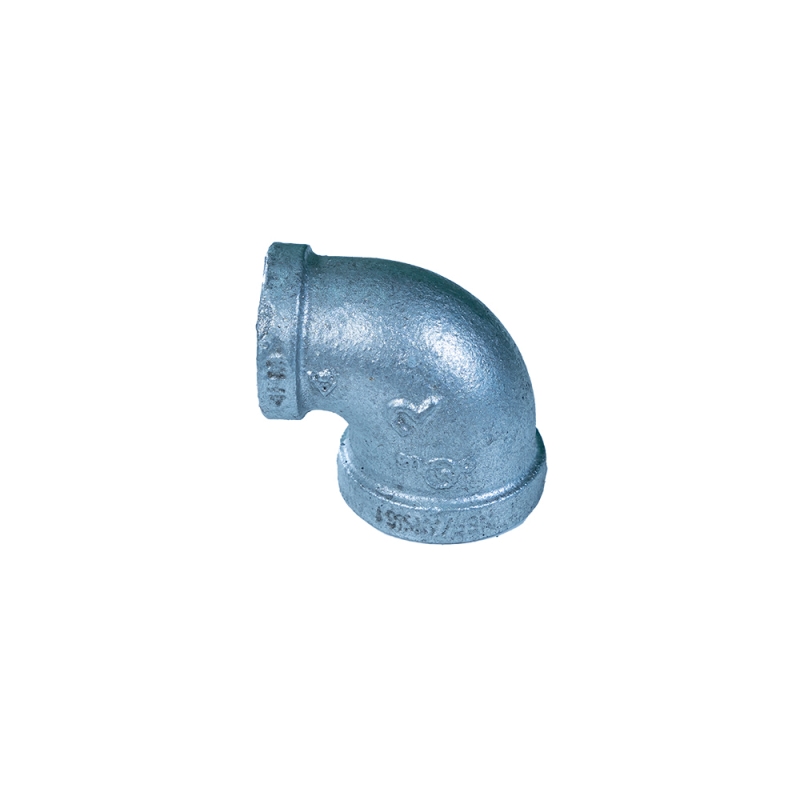

Malleable cast iron 90° reducing elbow is used to connect two pipes of different size by threaded connection, so to make the pipeline turn 90 degree for changing the fluid flow direction. Reduce elbows are commonly used in residential, commercial, and industrial plumbing and heating systems.
|
Item |
Size (inch) |
Dimensions |
Case Qty |
Special Case |
Weight |
|||
|
Number |
A | B |
Master |
Inner |
Master |
Inner |
(Gram) |
|
| REL0201 | 1/4 X 1/8 | 18.8 | 19.3 |
480 |
40 |
480 |
40 |
42.1 |
| REL0301 | 3/8 X 1/8 | 20.5 | 21.6 |
480 |
80 |
420 |
105 |
49 |
| REL0302 | 3/8 X 1/4 | 22.4 | 22.9 |
400 |
50 |
360 |
90 |
66.7 |
| REL0501 | 1/2 X 1/8 | 26.4 | 26.2 |
400 |
50 |
240 |
60 |
69 |
| REL0502 | 1/2 X 1/4 | 24.6 | 24.9 |
320 |
80 |
240 |
60 |
84 |
| REL0503 | 1/2 X 3/8 | 26.4 | 26.2 |
240 |
60 |
240 |
60 |
101.4 |
| REL0701 | 3/4 X 1/8 | 26.2 | 25.7 |
240 |
60 |
160 |
40 |
104.9 |
| REL0702 | 3/4 X 1/4 | 26.7 | 27.4 |
200 |
50 |
160 |
40 |
123.3 |
| REL0703 | 3/4 X 3/8 | 28.5 | 28.7 |
200 |
50 |
160 |
40 |
126.7 |
| REL0705 | 3/4 X 1/2 | 30.5 | 31.0 |
180 |
30 |
160 |
40 |
140 |
| REL1002 | 1 X 1/4 | 30.0 | 32.0 |
150 |
25 |
150 |
25 |
139 |
| REL1003 | 1 X 3/8 | 30.0 | 32.3 |
150 |
25 |
150 |
25 |
180 |
| REL1005 | 1 X 1/2 | 32.0 | 35.5 |
120 |
30 |
100 |
25 |
216.3 |
| REL1007 | 1 X 3/4 | 34.8 | 36.8 |
120 |
30 |
100 |
50 |
223 |
| REL1205 | 1-1/4 X 1/2 | 34.0 | 38.9 |
100 |
25 |
80 |
20 |
273 |
| REL1207 | 1-1/4 X 3/4 | 36.8 | 41.2 |
80 |
20 |
60 |
15 |
312 |
| REL1210 | 1-1/4 X 1 | 40.1 | 42.4 |
60 |
10 |
40 |
10 |
363 |
| REL1505 | 1-1/2 X 1/2 | 35.0 | 42.0 |
80 |
20 |
60 |
15 |
338.3 |
| REL1507 | 1-1/2 X 3/4 | 38.6 | 44.5 |
60 |
20 |
40 |
10 |
418.3 |
| REL1510 | 1-1/2 X 1 | 41.9 | 45.7 |
60 |
20 |
40 |
10 |
445 |
| REL1512 | 1-1/2 X 1-1/4 | 46.2 | 47.8 |
48 |
12 |
30 |
15 |
521.5 |
| REL2005 | 2 X 1/2 | 37.6 | 47.5 |
48 |
12 |
40 |
10 |
481.7 |
| REL2007 | 2 X 3/4 | 40.6 | 50.0 |
48 |
12 |
36 |
9 |
560 |
| REL2010 | 2 X 1 | 43.9 | 51.3 |
48 |
12 |
28 |
14 |
532.5 |
| REL2012 | 2 X 1-1/4 | 48.3 | 53.3 |
36 |
12 |
20 |
10 |
715.8 |
| REL2015 | 2 X 1-1/2 | 51.3 | 54.9 |
36 |
12 |
20 |
10 |
756 |
| REL2505 | 2-1/2 X 1/2 | 45.0 | 60.0 |
30 |
15 |
15 |
5 |
780 |
| REL2507 | 2-1/2 X 3/4 | 48.0 | 60.0 |
30 |
15 |
30 |
15 |
880 |
| REL2510 | 2-1/2 X 1 | 55.0 | 63.0 |
28 |
14 |
30 |
15 |
950 |
| REL2512 | 2-1/2 X 1-1/4 | 51.8 | 62.3 |
20 |
10 |
16 |
8 |
1080 |
| REL2515 | 2-1/2 X 1-1/2 | 54.9 | 63.8 |
20 |
10 |
12 |
6 |
1195 |
| REL2520 | 2-1/2 X 2 | 60.7 | 66.0 |
20 |
10 |
12 |
6 |
1270 |
| REL3010 | 3 X 1 | 50.5 | 67.6 |
18 |
6 |
20 |
10 |
1440 |
| REL3012 | 3 X 1-1/4 | 54.9 | 69.6 |
20 |
10 |
20 |
10 |
1360 |
| REL3015 | 3 X 1-1/2 | 58.0 | 71.0 |
18 |
9 |
8 |
4 |
1445 |
| REL3020 | 3 X 2 | 64.0 | 73.4 |
16 |
4 |
8 |
4 |
1724 |
| REL3025 | 3 X 2-1/2 | 71.9 | 75.9 |
12 |
6 |
8 |
4 |
2155.7 |
| REL4020 | 4 X 2 | 69.1 | 87.5 |
6 |
3 |
4 |
2 |
2289 |
| REL4025 | 4 X 2-1/2 | 77.2 | 89.1 |
8 |
4 |
4 |
2 |
2683 |
| REL4030 | 4 X 3 | 83.8 | 81.4 |
9 |
3 |
4 |
2 |
3075 |
| Material: Malleable iron |
| Type: Elbow 90Shape: Reduce |
| Place of Origin: Hebei,China |
| Brand Name: P |
| Material: ASTM A197 |
| standard: NPT,BSP |
| Size:1/4"-4" |
| Zinc Coating: SI 918,ASTM A 153 |
| Surface: Black; Hot-dipped galvanized; Electro |
| Packaging Details
1.Cartons without pallets 2.Cartons with pallets Lead time: Quantity(pieces) 1 - 10000 >10000 Lead time (days) 20 To be negotiated
|
