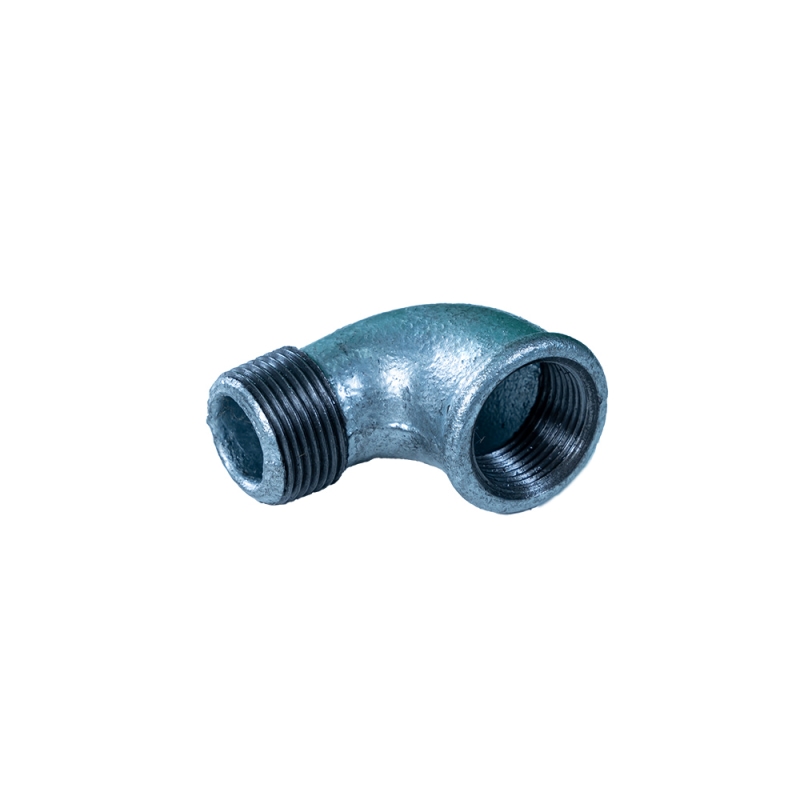

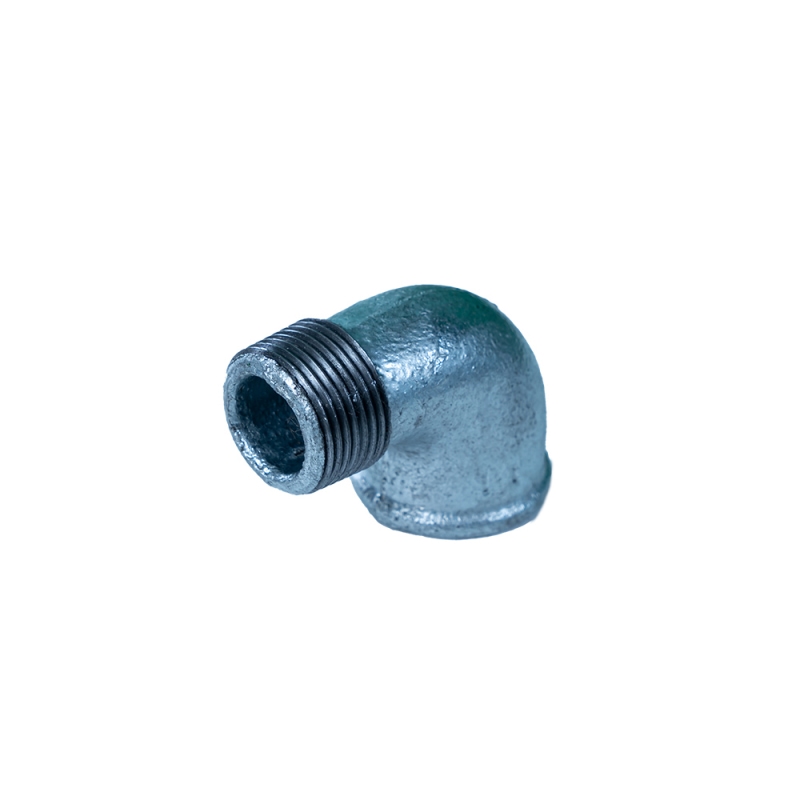

Category150 Class BS / EN standard Beaded Malleable cast iron pipe fittings
- Certificate: UL Listed / FM Approved
- Surface: Black iron / hot dip galvanized
- End: Beaded
- Brand: P or OEM
- Standard: ISO49/ EN 10242, symbol C
- Material: BS EN 1562, EN-GJMB-350-10
- Thread: BSPT / NPT
- W. pressure: 20 ~ 25 bar, ≤PN25
- Tensile Strength: 300 MPA(Minimum)
- Elongation:6% Minimum
- Zinc Coating: Average 70 um, each fitting ≥63 um
Available Size:
| Item |
Size |
Weight |
| Number |
(Inch) |
KG |
| ESL9005 |
1/2 |
0.085 |
| ESL9007 |
3/4 |
0.128 |
| ESL9010 |
1 |
0.207 |
| ESL9012 |
1.1/4 |
0.365 |
| ESL9015 |
1.1/2 |
0.457 |
| ESL9020 |
2 |
0.741 |
| ESL9025 |
2.1/2 |
1.21 |
| ESL9030 |
3 |
1.67 |
| ESL9040 |
4 |
2.094 |
Keep every pipe fitting that our Clients’ received is qualified.
1.Q: Are you factory or trading company?
A: We are factory with +30 years history in casting field.
2.Q: What terms of payment do you support?
A: TTor L/C. 30% payment in advance, and the 70%balance would be paid before shipment.
3.Q: How long is your delivery time?
A: 35 days upon receipt of advanced payment.
4.Q: Your Package?
A.Exporting Standard. 5-layer Master Cartons with inner boxes, Generally 48 Cartons packed in on pallet, and 20 pallets loaded in 1 x 20”container
5. Q: lt is possible to get samples from your factory?
A: Yes. free samples will be provided.
6. Q: How many years the products guaranteed?
A: Minimum 1 years.
