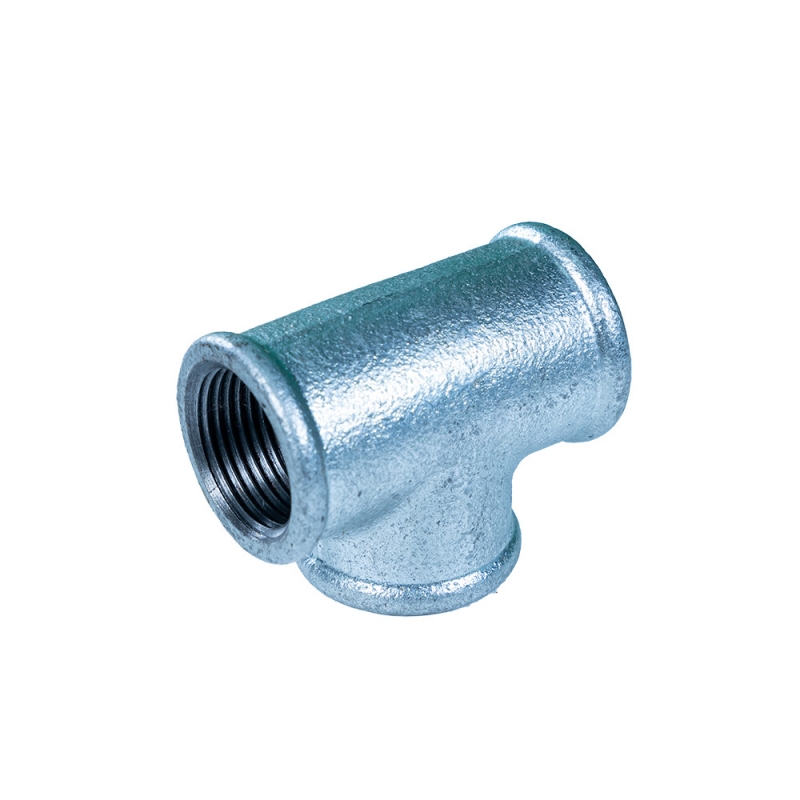

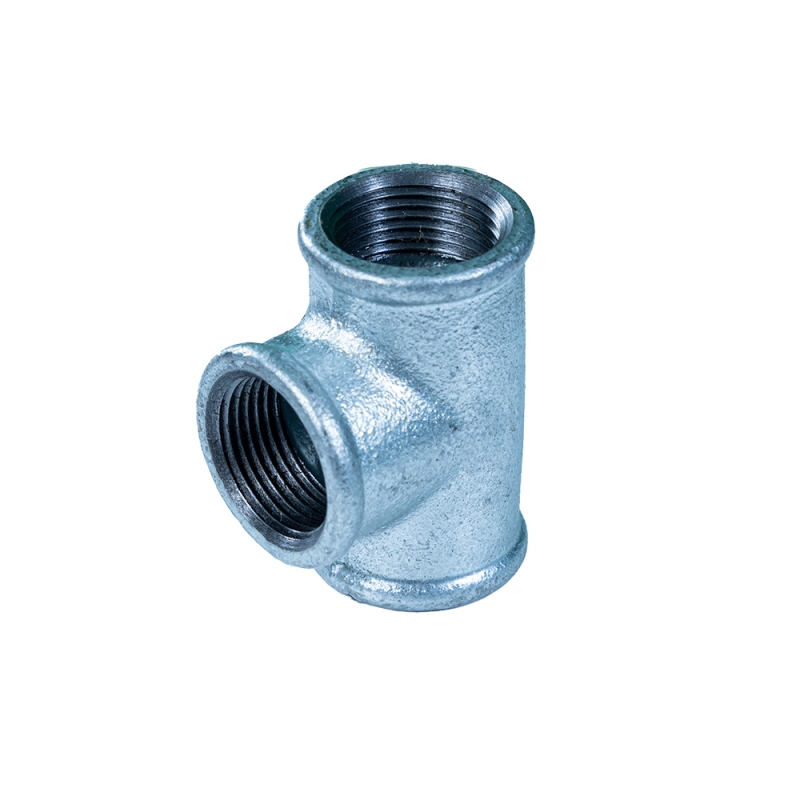

Malleable cast iron equal tee has a T shape to get its name. The branch outlet is the same size as the main outlet, and it is used to create a branch pipeline to 90 degree direction.
Category150 Class BS / EN standard Beaded Malleable cast iron pipe fittings
Certificate: UL Listed / FM Approved
Surface: Black iron / hot dip galvanized
End: Beaded
Brand: P and OEM is acceptable
Standard: ISO49/ EN 10242, symbol C
Material: BS EN 1562, EN-GJMB-350-10
Thread: BSPT / NPT
W. pressure: 20 ~ 25 bar, ≤PN25
Tensile Strength: 300 MPA(Minimum)
Elongation:6% Minimum
Zinc Coating: Average 70 um, each fitting ≥63 um
Available Size:
| Item |
Size |
Weight |
| Number |
(Inch) |
KG |
| ET05 |
1/2 |
0.131 |
| ET07 |
3/4 |
0.199 |
| ET10 |
1 |
0.306 |
| ET12 |
1.1/4 |
0.48 |
| ET15 |
1.1/2 |
0.688 |
| ET20 |
2 |
1.125 |
| ET25 |
2.1/2 |
1.407 |
| ET30 |
3 |
1.945 |
| ET40 |
4 |
3.93 |
1.Heavy molds and competitive prices
2.Having accumulating Experience on producing and exporting since 1990s
3.Efficient Service: Replying a Inquiry within 4 hours, fast delivery.
4. Third party certificate, such as UL and FM, SGS.
Keep every pipe fitting that our Clients’ received is qualified.
Q:Are you factory or trading company?
A:We are factory with +30 years history in casting field.
Q: What terms of payment do you support?
A: TTor L/C. 30% payment in advance, and the 70%balance would be
paid before shipment.
Q: How long is your delivery time?
A: 35 days upon receipt of advanced payment.
Q: lt is possible to get samples from your factory?
A: Yes. free samples will be provided.
Q: How many years the products guaranteed?
A: Minimum 1 years.
