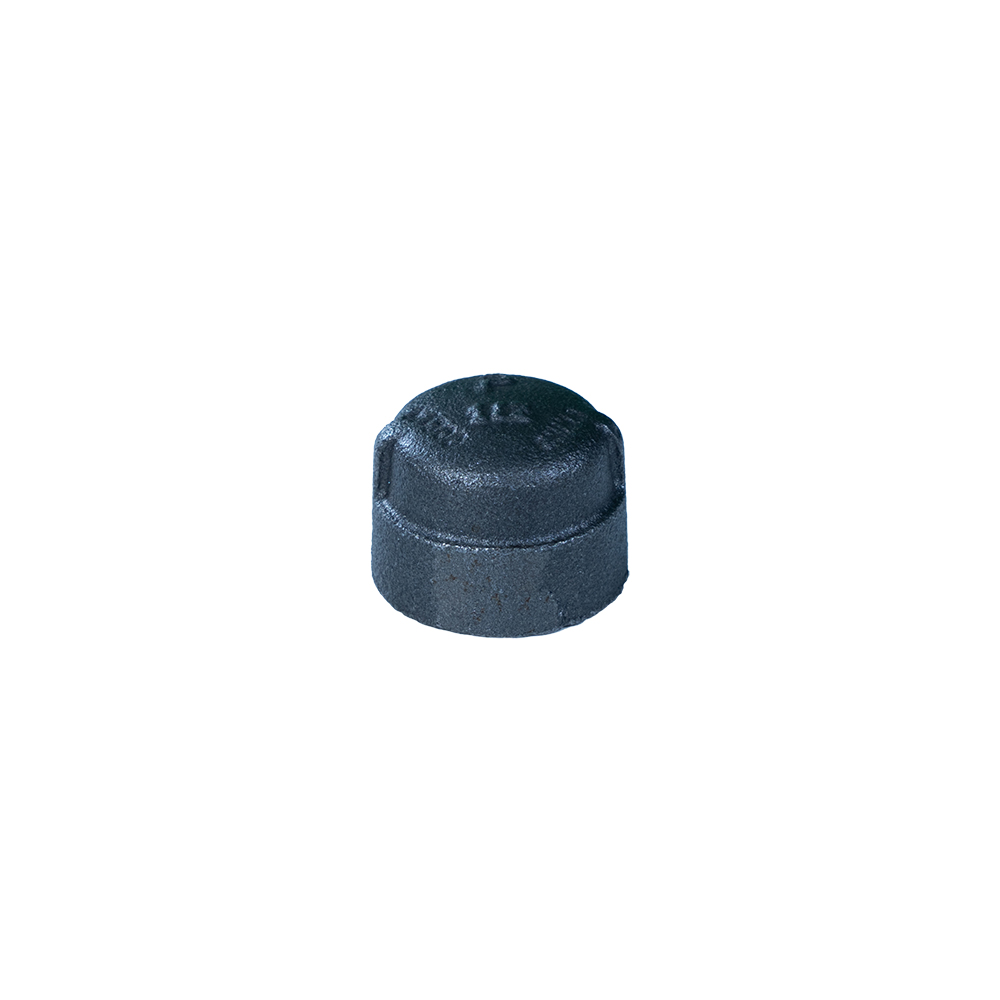

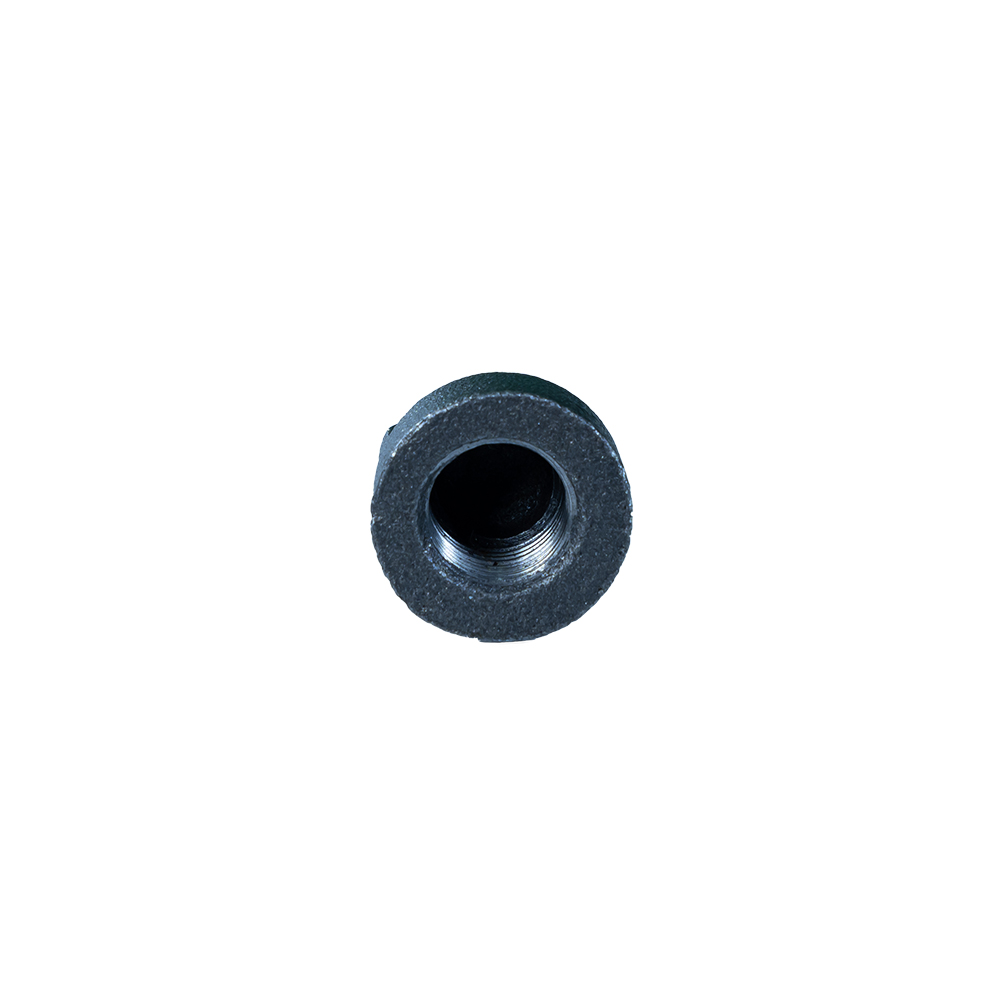

Category 300 Class American standard Malleable iron pipe fittings
Certificate: UL Listed / FM Approved
Surface: Black iron / Hot dip galvanized
Standard: ASME B16.3
Material: Malleable iron ASTM A197
Thread: NPT / BS21
W. pressure: 300 P.S.I. 10 kg/cm at 550° F
Surface: Black iron / Hot dip galvanized
Tensile Strength:28.4 kg/mm(Minimum)
Elongation:5% Minimum
Zinc Coating: Average 86 um, each fitting ≥77.6 um
Available Size:
|
Item |
Size (inch) |
Dimensions |
Case Qty |
Special Case |
Weight |
||||||||||||||
|
Number |
|
|
A |
|
B | C |
Master |
Inner |
Master |
Inner |
(Gram) |
||||||||
| CAP02 | 1/4 | 19.8 |
360 |
180 |
180 |
90 |
* | ||||||||||||
| CAP03 | 3/8 | 21.4 |
240 |
120 |
120 |
60 |
62 |
||||||||||||
| CAP05 | 1/2 | 24.9 |
160 |
80 |
80 |
40 |
100 |
||||||||||||
| CAP07 | 3/4 | 27.4 |
100 |
50 |
50 |
25 |
153.3 |
||||||||||||
| CAP10 | 1 | 32.0 |
60 |
30 |
30 |
15 |
250 |
||||||||||||
| CAP12 | 1-1/4 | 35.0 |
40 |
20 |
20 |
10 |
381 |
||||||||||||
| CAP15 | 1-1/2 | 36.3 |
30 |
15 |
15 |
15 |
472 |
||||||||||||
| CAP20 | 2 | 42.7 |
20 |
10 |
10 |
5 |
800 |
||||||||||||
| CAP25 | 2-1/2 | 56.0 |
16 |
8 |
8 |
4 |
875 |
||||||||||||
| CAP30 | 3 | 60.0 |
10 |
5 |
4 |
2 |
1197 |
||||||||||||
| CAP40 | 4 | 70.0 |
6 |
3 |
2 |
1 |
3137 |
||||||||||||
Keep every pipe fitting that our Clients’ received is qualified.
Q:Are you factory or trading company?
A:We are factory with +30 years history in casting field.
Q: What terms of payment do you support?
A: TTor L/C. 30% payment in advance, and the 70%balance would be
paid before shipment.
Q: How long is your delivery time?
A: 35 days upon receipt of advanced payment.
Q: lt is possible to get samples from your factory?
A: Yes. free samples will be provided.
Q: How many years the products guaranteed?
A: Minimum 1 years.
