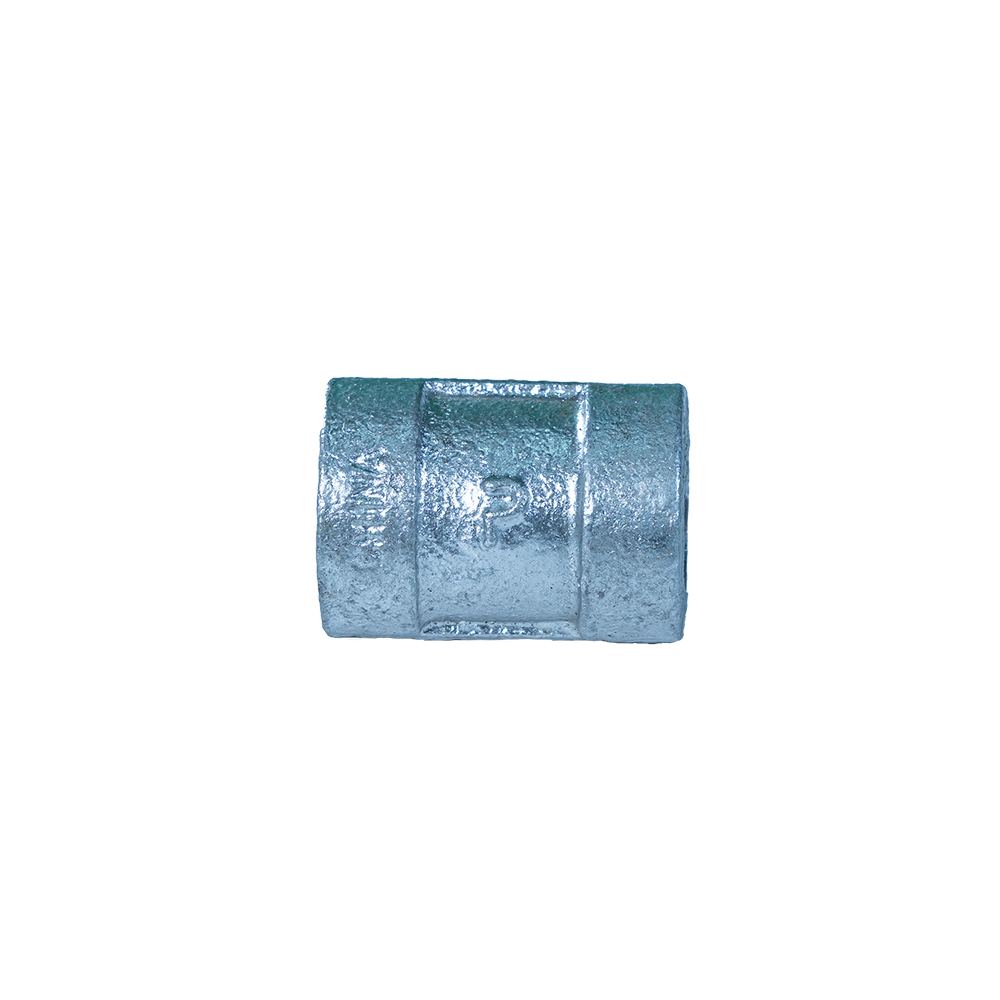

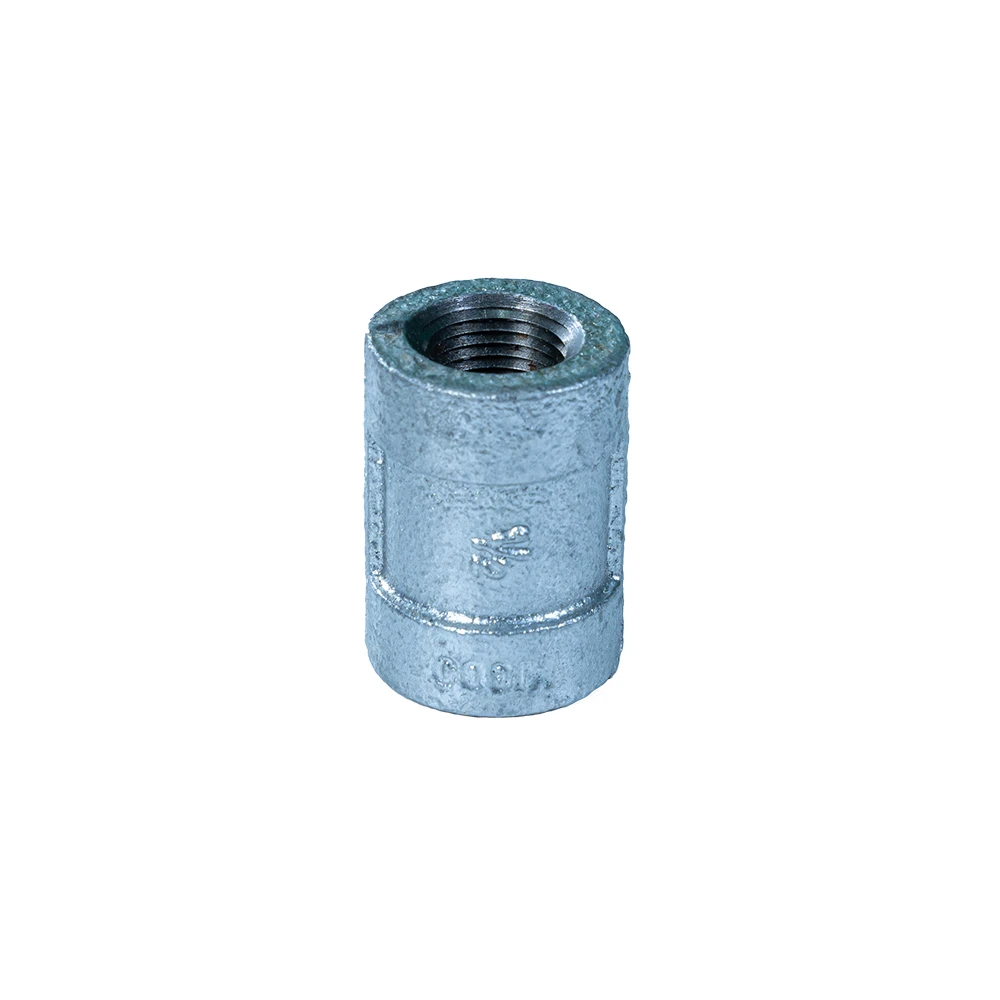

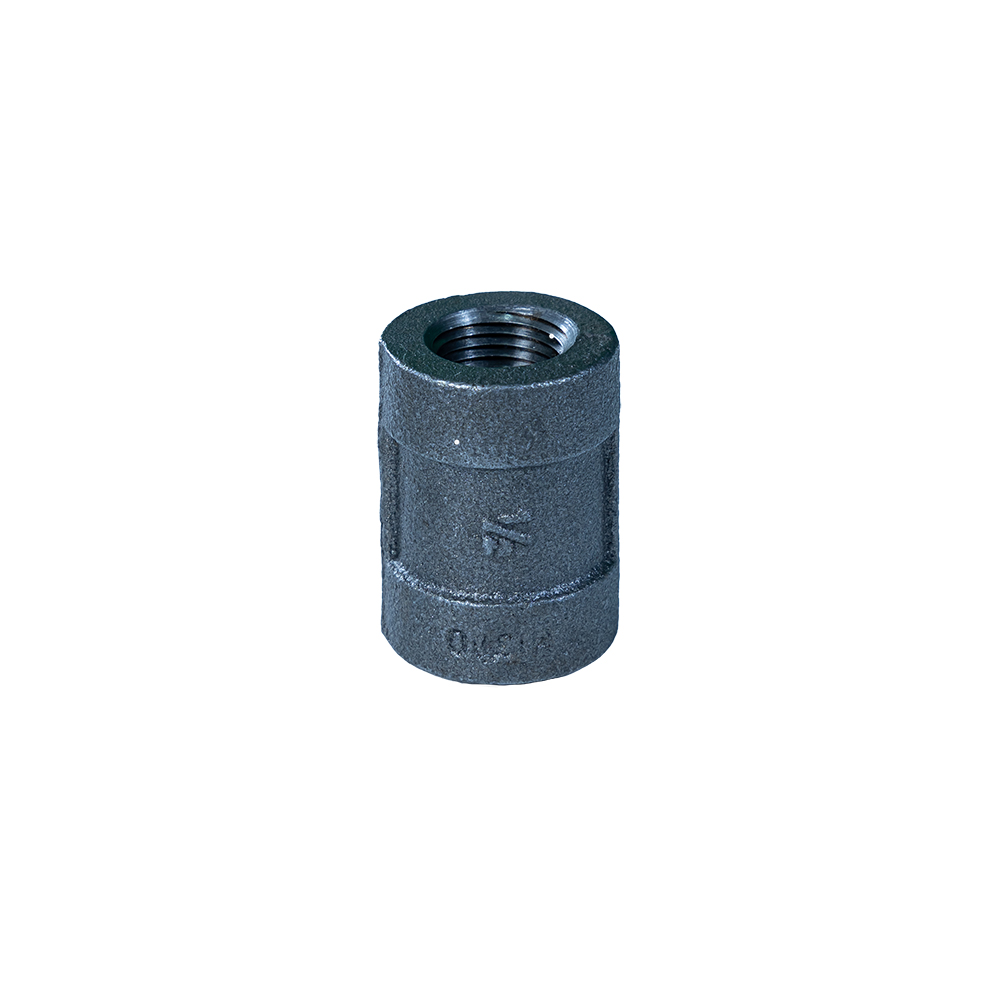

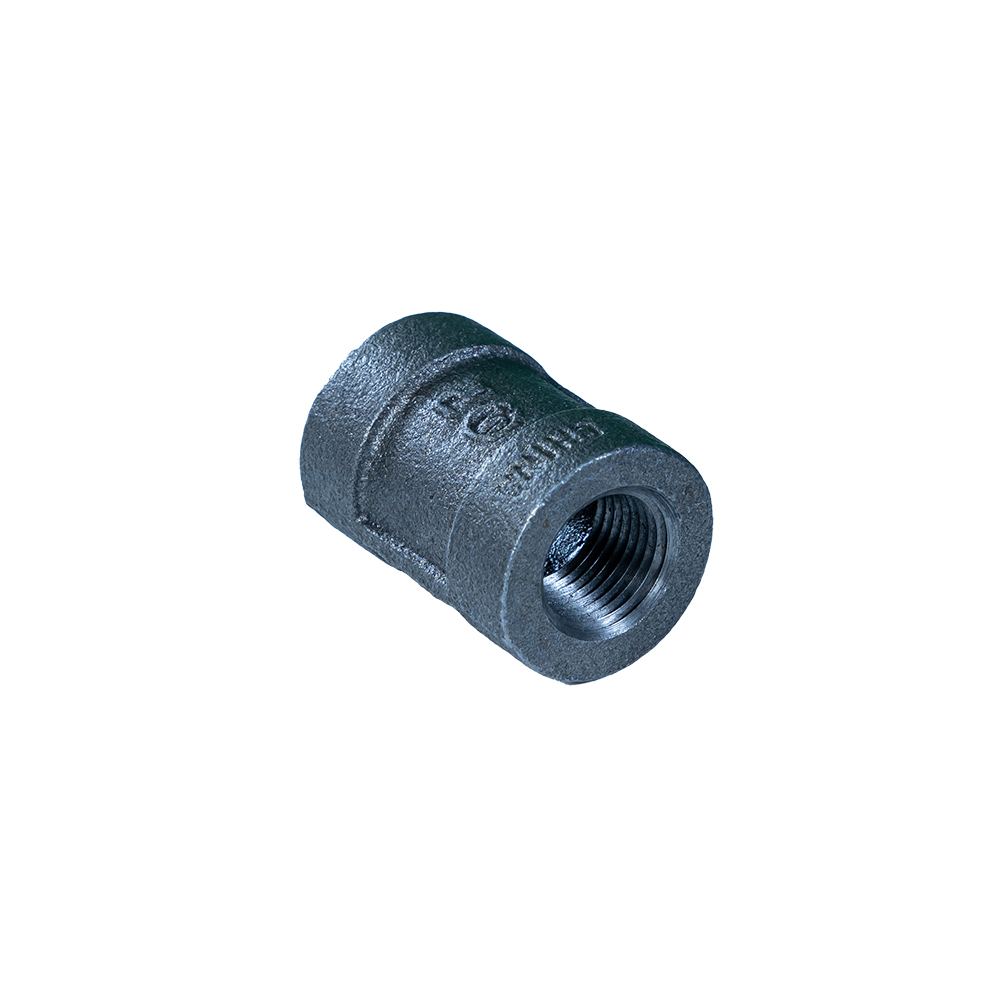

American standard malleable iron pipe fittings, category 300
Certificate: FM and UL Listed Approved
Superficie: Galvanizado en caliente y hierro negro.
Material: malleable iron Standard: ASME B16.3 ASTM A197
pressure: 300 PSI, 10 kg/cm at 550°F, thread: NPT/BS21 W
Superficie: Galvanizado en caliente y hierro negro.
Strength in Tension: 28.4 kg/mm (Minimum)
Alargamiento: 5% mínimo
Zinc Coating: Each fitting 77.6 um and averaging 86 um.

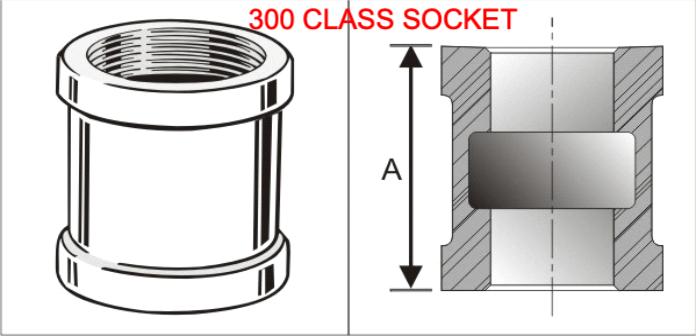

Tamaño disponible:
|
Artículo |
Tamaño (pulgadas) |
Dimensiones |
Cantidad de cajas |
Caso especial |
Peso |
|||||||||||||||
|
Número |
|
|
A |
|
B |
Maestro |
Interno |
Maestro |
Interno |
(Gramo) |
||||||||||
| CPL02 | 1/4 |
|
34.8 |
400 |
200 |
200 |
100 |
68 |
||||||||||||
| CPL03 | 3/8 |
|
41.4 |
240 |
120 |
150 |
75 |
111 |
||||||||||||
| CPL05 | 1/2 | 47.5 |
80 |
40 |
40 |
20 |
181 |
|||||||||||||
| CPL07 | 3/4 | 53.8 |
60 |
30 |
30 |
15 |
279 |
|||||||||||||
| CPL10 | 1 | 60.2 |
40 |
20 |
20 |
10 |
416.5 |
|||||||||||||
| CPL12 | 1-1/4 | 72.9 |
24 |
12 |
12 |
6 |
671.7 |
|||||||||||||
| CPL15 | 1-1/2 | 72.9 |
24 |
12 |
12 |
6 |
835 |
|||||||||||||
| CPL20 | 2 | 91.9 |
12 |
6 |
6 |
3 |
1394 |
|||||||||||||
| CPL25 | 2-1/2 | 104.6 |
4 |
2 |
2 |
2 |
2216 |
|||||||||||||
| CPL30 | 3 | 104.6 |
4 |
2 |
2 |
2 |
3204 |
|||||||||||||
| CPL40 | 4 | 108.0 |
4 |
2 |
2 |
1 |
4700 |
|||||||||||||
This fitting is mainly used to connect different types of pipes, such as water pipes, gas pipes, and oil pipes. It is typically used in construction, chemical, agricultural, mining, and manufacturing industries, among others. It is able to withstand high temperatures and pressures, making it widely used in some important industrial applications.
- Malleability: This fitting is made of malleable cast iron and can be deformed during hot processing, making it suitable for many different applications. The malleability also allows the product to better accommodate pipe deformations and vibrations.
- Durability: Malleable cast iron has high strength and corrosion resistance, making it able to be used for long periods of time without damage. This durability makes it the preferred choice for many applications.
- Fácil instalación: The design of this fitting makes it very easy to install and remove as it only requires rotation to connect with other fittings, without the need for any tools.
- Universality: This product conforms to American standards and is therefore compatible with other fittings that conform to those standards. This makes the product very versatile and able to be used in various pipe systems.
The "300 Class American Standard Malleable Iron Pipe Fittings Socket/Coupling" is a powerful, durable, and easy-to-install fitting. It is widely used in construction, chemical, agricultural, mining, and manufacturing industries due to its malleability, durability, easy installation, and universality.
Mantener calificado cada accesorio de tubería que nuestros Clientes reciben.
P: ¿Es usted una fábrica o una empresa comercial?
A:Somos una fábrica con más de 30 años de historia en el campo de la fundición.
P: ¿Qué condiciones de pago admiten?
A: TTor L/C. 30% payment in advance, and the 70%balance would be paid before shipment.
P: ¿Cuánto tiempo dura su entrega?
A: 35 días a partir de la recepción del pago anticipado.
P: ¿Es posible obtener muestras de su fábrica?
R: Sí. Se proporcionarán muestras gratuitas.
P: ¿Cuántos años tienen garantía los productos?
A: Mínimo 1 año.
