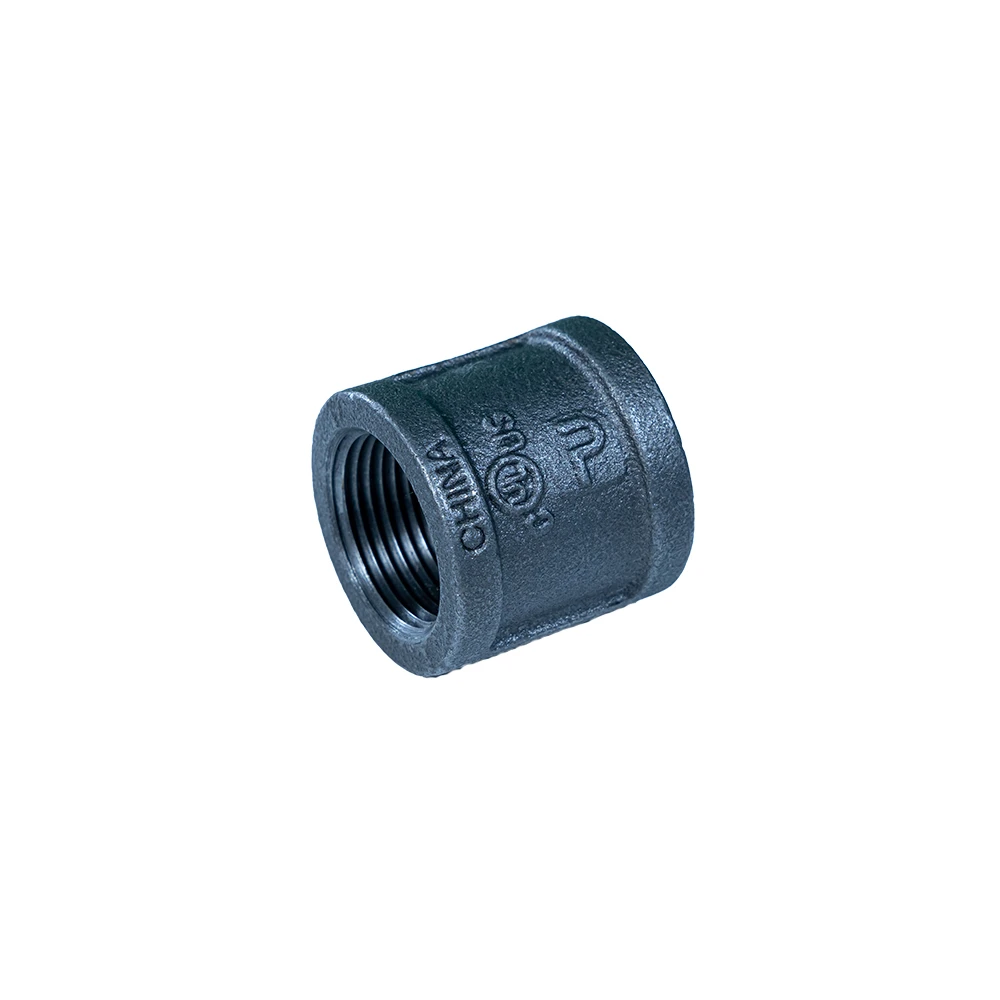

American standard malleable iron pipe fittings, category 300
Certificate: FM and UL Listed Approved
Surface : Galvanisé à chaud et fer noir
Material: malleable iron Standard: ASME B16.3 ASTM A197
pressure: 300 PSI, 10 kg/cm at 550°F, thread: NPT/BS21 W
Surface : Galvanisé à chaud et fer noir
Strength in Tension: 28.4 kg/mm (Minimum)
Allongement : 5 % minimum
Zinc Coating: Each fitting 77.6 um and averaging 86 um.
Taille disponible :
|
Article |
Taille (pouces) |
Dimensions |
Quantité par caisse |
Cas particulier |
Poids |
|||||||||||||||
|
Nombre |
|
|
A |
|
B |
Maître |
Intérieur |
Maître |
Intérieur |
(Gramme) |
||||||||||
| CPL02 | 1/4 |
|
34.8 |
400 |
200 |
200 |
100 |
68 |
||||||||||||
| CPL03 | 3/8 |
|
41.4 |
240 |
120 |
150 |
75 |
111 |
||||||||||||
| CPL05 | 1/2 | 47.5 |
80 |
40 |
40 |
20 |
181 |
|||||||||||||
| CPL07 | 3/4 | 53.8 |
60 |
30 |
30 |
15 |
279 |
|||||||||||||
| CPL10 | 1 | 60.2 |
40 |
20 |
20 |
10 |
416.5 |
|||||||||||||
| CPL12 | 1-1/4 | 72.9 |
24 |
12 |
12 |
6 |
671.7 |
|||||||||||||
| CPL15 | 1-1/2 | 72.9 |
24 |
12 |
12 |
6 |
835 |
|||||||||||||
| CPL20 | 2 | 91.9 |
12 |
6 |
6 |
3 |
1394 |
|||||||||||||
| CPL25 | 2-1/2 | 104.6 |
4 |
2 |
2 |
2 |
2216 |
|||||||||||||
| CPL30 | 3 | 104.6 |
4 |
2 |
2 |
2 |
3204 |
|||||||||||||
| CPL40 | 4 | 108.0 |
4 |
2 |
2 |
1 |
4700 |
|||||||||||||
This fitting is mainly used to connect different types of pipes, such as water pipes, gas pipes, and oil pipes. It is typically used in construction, chemical, agricultural, mining, and manufacturing industries, among others. It is able to withstand high temperatures and pressures, making it widely used in some important industrial applications.
- Malleability: This fitting is made of malleable cast iron and can be deformed during hot processing, making it suitable for many different applications. The malleability also allows the product to better accommodate pipe deformations and vibrations.
- Durability: Malleable cast iron has high strength and corrosion resistance, making it able to be used for long periods of time without damage. This durability makes it the preferred choice for many applications.
- Installation facile : The design of this fitting makes it very easy to install and remove as it only requires rotation to connect with other fittings, without the need for any tools.
- Universality: This product conforms to American standards and is therefore compatible with other fittings that conform to those standards. This makes the product very versatile and able to be used in various pipe systems.
The "300 Class American Standard Malleable Iron Pipe Fittings Socket/Coupling" is a powerful, durable, and easy-to-install fitting. It is widely used in construction, chemical, agricultural, mining, and manufacturing industries due to its malleability, durability, easy installation, and universality.
Assurez-vous que chaque raccord de tuyauterie reçu par nos clients est qualifié.
Q : Êtes-vous une usine ou une société commerciale ?
R : Nous sommes une usine avec plus de 30 ans d'histoire dans le domaine du moulage.
Q : Quelles conditions de paiement acceptez-vous ?
A: TTor L/C. 30% payment in advance, and the 70%balance would be paid before shipment.
Q : Quel est votre délai de livraison ?
A : 35 jours après réception du paiement anticipé.
Q : Est-il possible d'obtenir des échantillons de votre usine ?
R : Oui. Des échantillons gratuits seront fournis.
Q : Combien d'années les produits sont-ils garantis ?
A : Minimum 1 an.
