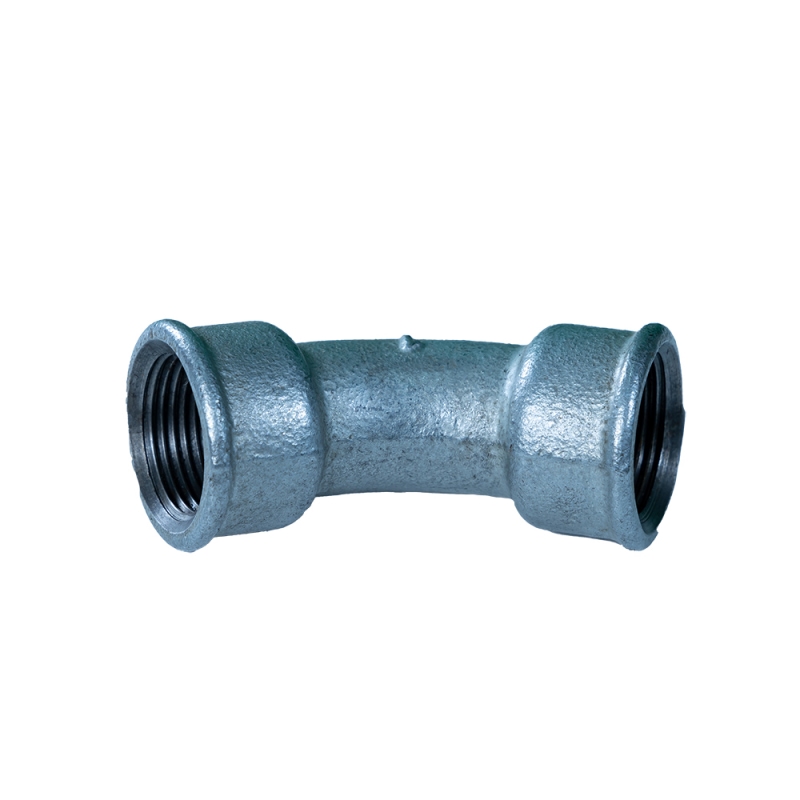

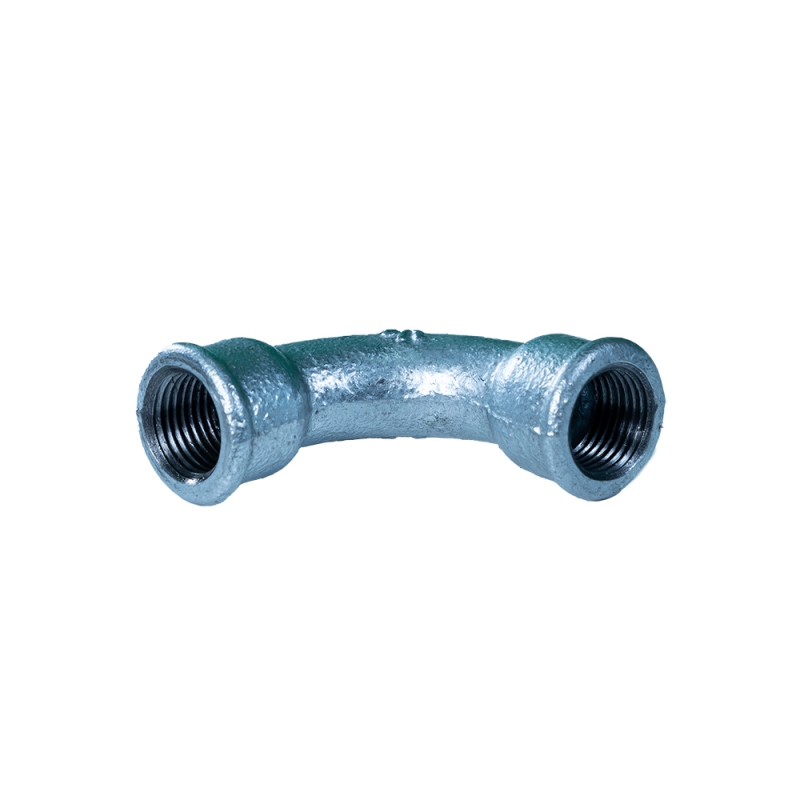

Category150 Class BS / EN standard Beaded Malleable cast iron pipe fittings
- Takaddun shaida: UL List / FM Amincewa
- Surface: Black baƙin ƙarfe / zafi tsoma galvanized
- Ƙarshe: Ƙanƙara
- Alamar: P da OEM ana karɓa
- Standard: ISO49/EN 10242, alamar C
- Abu: EN 1562, EN-GJMB-350-10
- Bayani: BSPT/NPT
- W. pressure: 20 ~ 25 bar, ≤PN25
- Ƙarfin Ƙarfin Ƙarfin Ƙarfi: 300 MPA (Mafi ƙarancin)
- Tsawaitawa: 6% Mafi ƙarancin
- Zinc Coating: Average 70 um, each fitting ≥63 um
- Girman samuwa:
| Abu |
Girman |
Nauyi |
| Lamba |
(Inci) |
KG |
| EBL4505 |
1/2 |
0.102 |
| EBL4507 |
3/4 |
0.206 |
| EBL4510 |
1 |
0.275 |
| EBL4512 |
1.1/4 |
0.473 |
| EBL4515 |
1.1/2 |
0.588 |
1.Heavy molds da m farashin
2. Samun Tara Kwarewa akan samarwa da fitarwa tun 1990s
3.Efficient Service: Amsa tambaya a cikin 4 hours, da sauri bayarwa.
4. Takaddun shaida na ɓangare na uku, kamar UL da FM, SGS.
Keep every pipe fitting that our Clients’ received is qualified.
1.Q: Shin ku masana'anta ne ko kamfani na kasuwanci?
A: Mu ne masana'anta tare da + 30 shekaru tarihi a simintin filin.
2.Q: Wane sharuɗɗan biyan kuɗi kuke tallafawa?
A: TTor L/C. 30% payment in advance, and the 70%balance would be paid before shipment.
3.Q: Yaya tsawon lokacin isar da ku?
A: Kwanaki 35 bayan samun ci gaba na biyan kuɗi.
4.Q： Your Package?
A.Exporting Standard. 5-layer Master Cartons with inner boxes, Generally 48 Cartons packed in on pallet, and 20 pallets loaded in 1 x 20”container
5. Q: lt zai yiwu a sami samfurori daga masana'anta?
A: iya. Za a ba da samfurori kyauta.
6. Q: Shekaru nawa ne samfuran garanti?
A: Mafi ƙarancin shekara 1.
Malleable fittings are those fittings having the property of malleability. This is a physical property of metals and metalloids, or any kind of matter. We call a metal malleable when it can easily be deformed, especially by hammering or rolling, without cracking the metal. Malleability is important to form pressing materials such as metals and plastics.
