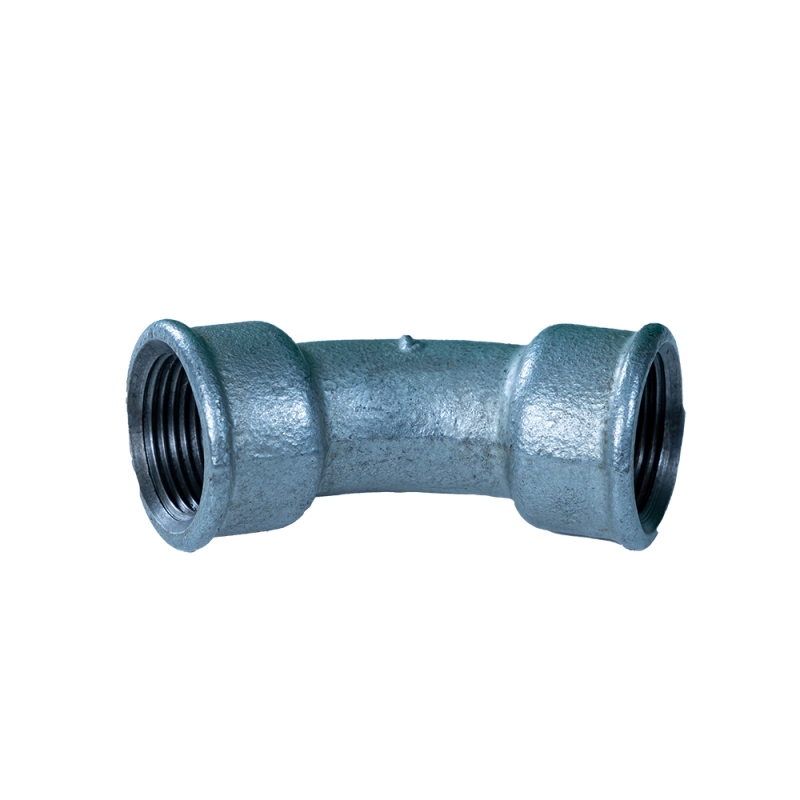

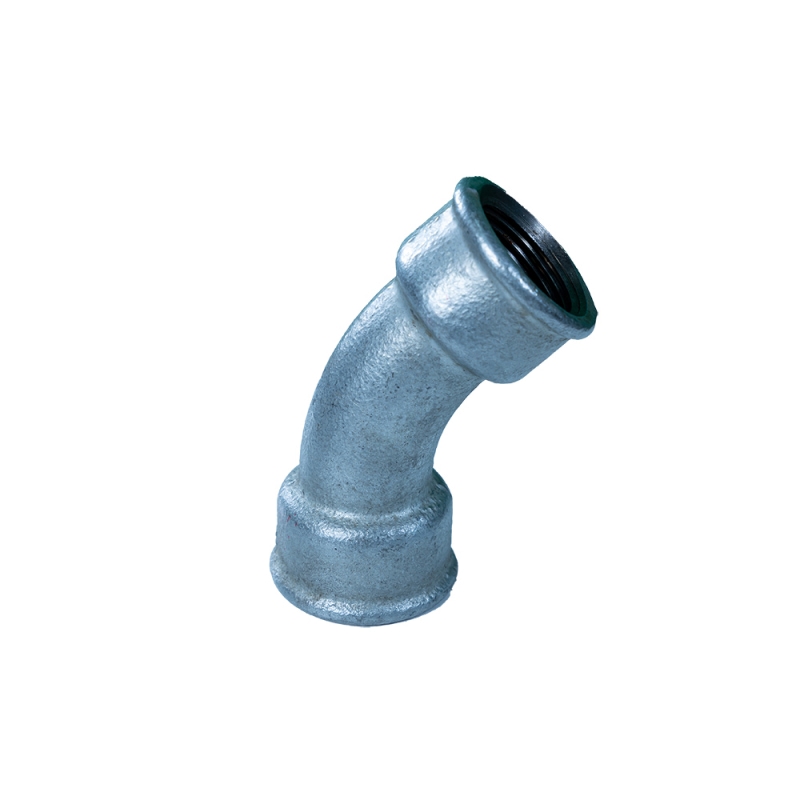

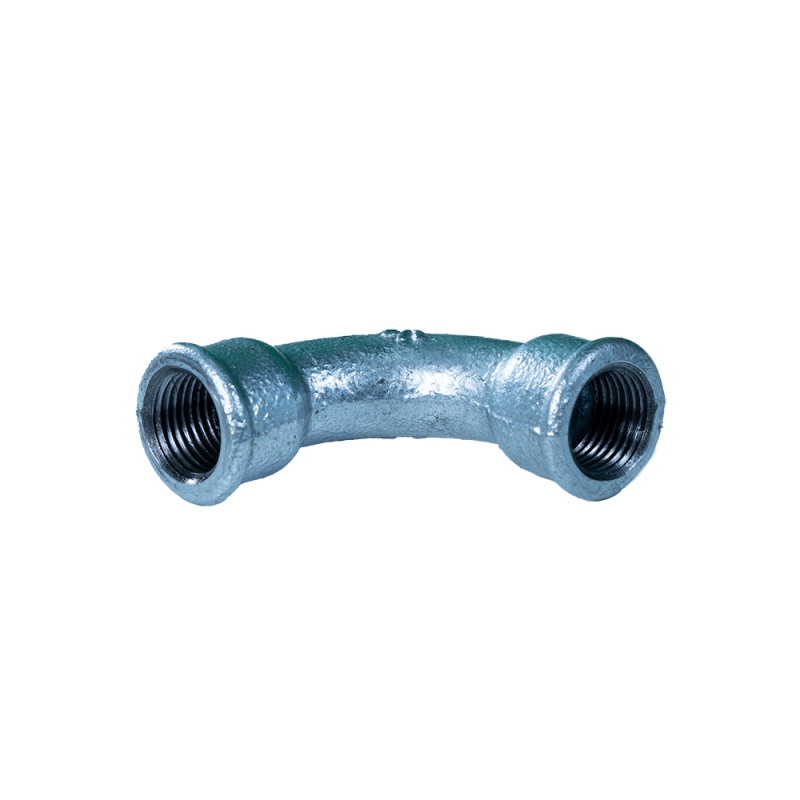

Category150 Class BS / EN standard Beaded Malleable cast iron pipe fittings
- Certificate: UL Listed / FM Approved
- Surface: Black iron / hot dip galvanized
- End: Beaded
- Brand: P and OEM is acceptable
- Standard: ISO49/ EN 10242, symbol C
- Material: BS EN 1562, EN-GJMB-350-10
- Thread: BSPT / NPT
- W. pressure: 20 ~ 25 bar, ≤PN25
- Tensile Strength: 300 MPA(Minimum)
- Elongation:6% Minimum
- Zinc Coating: Average 70 um, each fitting ≥63 um
- Available Size:
| Item |
Size |
Weight |
| Number |
(Inch) |
KG |
| EBL4505 |
1/2 |
0.102 |
| EBL4507 |
3/4 |
0.206 |
| EBL4510 |
1 |
0.275 |
| EBL4512 |
1.1/4 |
0.473 |
| EBL4515 |
1.1/2 |
0.588 |
1.Heavy molds and competitive prices
2.Having accumulating Experience on producing and exporting since 1990s
3.Efficient Service: Replying a Inquiry within 4 hours, fast delivery.
4. Third party certificate, such as UL and FM, SGS.
Keep every pipe fitting that our Clients’ received is qualified.
1.Q:Are you factory or trading company?
A:We are factory with +30 years history in casting field.
2.Q: What terms of payment do you support?
A: TTor L/C. 30% payment in advance, and the 70%balance would be paid before shipment.
3.Q: How long is your delivery time?
A: 35 days upon receipt of advanced payment.
4.Q： Your Package?
A.Exporting Standard. 5-layer Master Cartons with inner boxes, Generally 48 Cartons packed in on pallet, and 20 pallets loaded in 1 x 20”container
5. Q: lt is possible to get samples from your factory?
A: Yes. free samples will be provided.
6. Q: How many years the products guaranteed?
A: Minimum 1 years.
Malleable fittings are those fittings having the property of malleability. This is a physical property of metals and metalloids, or any kind of matter. We call a metal malleable when it can easily be deformed, especially by hammering or rolling, without cracking the metal. Malleability is important to form pressing materials such as metals and plastics.
