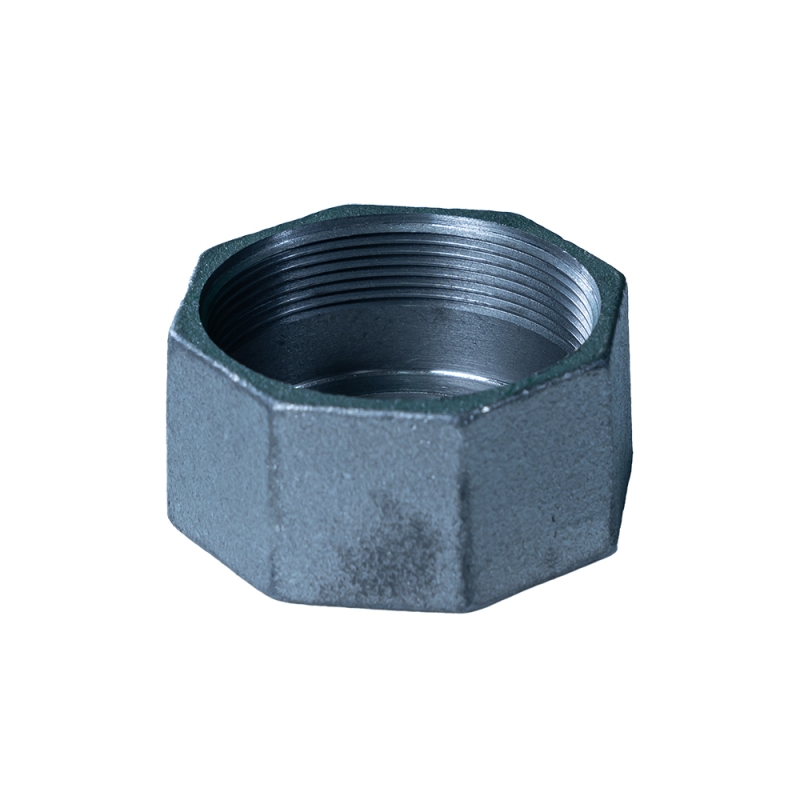

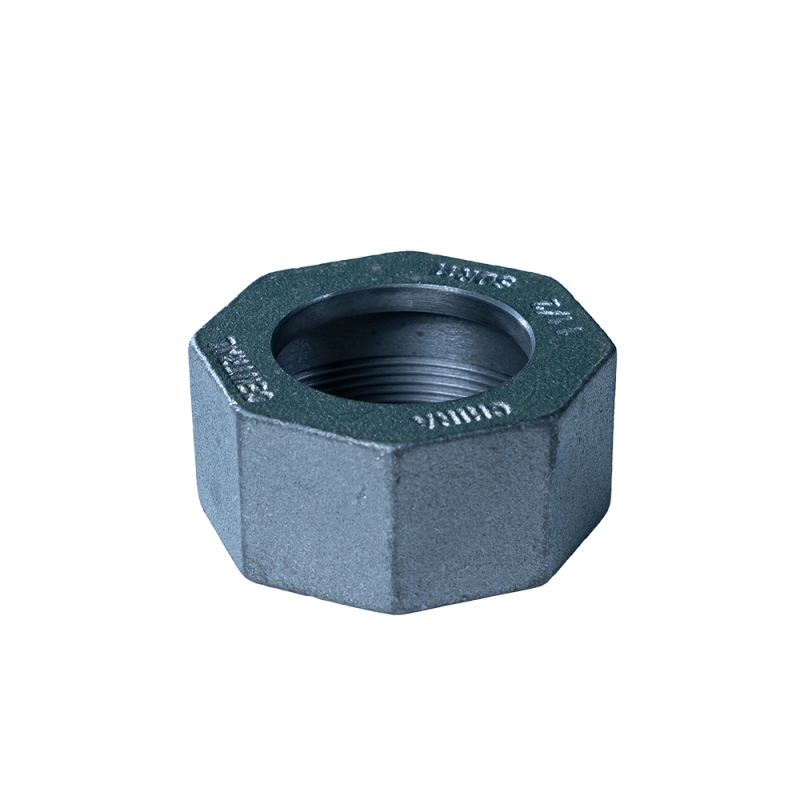

镀锌连接管适配器

简短描述:

This Galvanized Compression Adapter is used to modify and repair existing pipes as well as new construction. The galvanized material ensures a strong, corrosion resistant connection.


  • :

  • PDF 下载
    细节
    标签
    优点

    The Hot Dip Galvanized Malleable Iron Pipe Fitting Quick Jointing Pipes Adapter is a great choice for modifying and repairing existing pipes as well as new construction. It features a galvanized material that ensures an incredibly strong and corrosion resistant connection, making it perfect for outdoor applications where strength and durability are of the utmost importance. This adapter provides superior resistance to rust, corrosion, wear and tear due to its hot dip galvanizing process which coats the entire fitting with zinc. This layer of protection helps ensure your pipe will remain safe from environmental damage while also providing extra support when connecting two pieces of pipe together. The quick jointing design allows you to quickly attach one piece of pipe to another without having to use tools or additional materials, reducing installation time significantly. The Hot Dip Galvanized Malleable Iron Pipe Fitting Quick Jointing Pipes Adapter is an ideal solution for any application requiring reliable connections between pipes in outdoor settings such as garden irrigation systems or industrial piping networks. Its robust construction makes it suitable for high pressure systems too, ensuring optimal performance even under extreme conditions. With its unbeatable strength and corrosion resistance properties this product is sure to provide years of reliable service no matter what environment it’s used in!

    产品详情

    材质:可锻铸铁
    工艺:铸造
    Type: Reducing Nipple &Nut
    产地:中国河北(大陆)
    品牌名称:P
    Connection: male
    Shape: Straight
    标准:NPT、BS21
    Surface: hot dipped galvanized
    OEM产品
    我们可以根据客户的要求生产该产品。


    常问问题

    问:你们是工厂还是贸易公司?
    答:我们是一家在铸造领域拥有 30 多年历史的工厂。

    问:你们支持什么付款条件?
    答:TTor L/C,预付30%,余额70%在发货前支付。

    问:你们的交货时间是多长?
    答:收到预付款后 35 天。

    Q:  Your Package?
    Exporting Standard. 5-layer Master Cartons with inner boxes, Generally 48 Cartons packed in on pallet, and 20 pallets loaded in 1 x 20”container

    问:可以从你们工厂获得样品吗?
    答:是的,将提供免费样品。

    问:产品保修几年?
    答:至少 1 年。



    如果您对我们的产品感兴趣,您可以选择在这里留下您的信息,我们会尽快与您联系。


    在这里写下您的信息并发送给我们
    • head_banner_01
    镀锌连接管适配器

    简短描述:

    根据客户要求定制产品。
    CNC加工
    精密螺纹
    150 级


    PDF 下载
    细节
    标签
    简要描述

    Customized Products as our client’s requirement.
    CNC加工
    精密螺纹
    150 级

    我们的口号

    确保客户收到的每一根管件都是合格的。

    FAQ: Types of threads

    Various threads available in pipe and pipe fittings are as follows:

    Right-handed or Left-handed Threads
    Nearly all threads are oriented so that a bolt or nut or any fitting can be tightened. By turning it in a clockwise direction, the item turned moves away from the viewer. And it is loosened by turning anticlockwise when the item moves towards the viewer . This is known as a right-handed thread. Left-handed threads are oriented in the opposite direction. There are also self-tapping screw threads where no nut or bolt is required.

    Customized Malleable Iron Pipe Fitting Compression01

    外螺纹
    In male threads, the threads of the pipe are on the outside. Here, tapered pipe threads like NPT, BSPT etc. are used sealing without gaskets.

    内螺纹
    In female threads, the threads are on the inside. Here too, like male threads, tapered pipe threads are used for sealing.

    Male Straight Thread
    Pipe threads like UNC, UNF, ASME, etc form Male Straight Thread.

    Female Straight Thread
    Straight pipe threads like UNC, UNF, ASME, etc.

    Plain End
    This is used to connect or insert into the bell end of the connecting pipe.

    Bell / Socket / Flare
    This represents the end length of increased diameter into which a pipe end can be fitted.

    Flange
    Flanges are used to connect fitting, via bolting or welding. There are basically two types of flanges, circular and square.

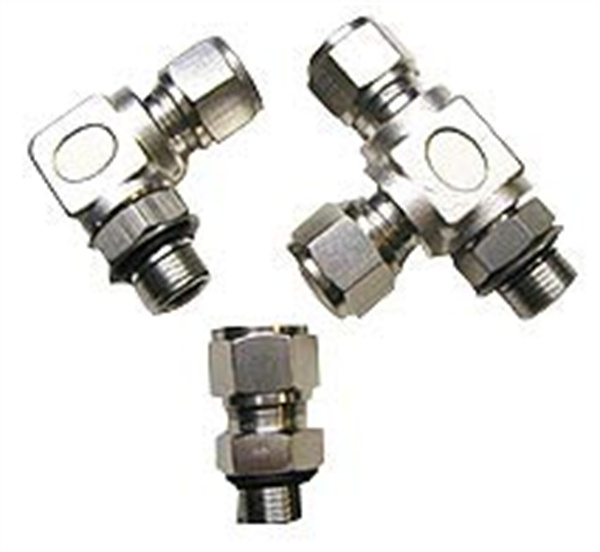

    Compression Fitting
    This represents compression nut and ferrule to connect to a mating pipe.

    Pipe Clamp End
    It is so designed so as to attached to run on pipe or other fitting.

    Barb / Rib
    This represents fitting ends to connect only non-rigid pipe or hose. It is sometimes used with a clamped end.

    Groove
    This refers to the installation of a coupling feature like an o-ring or elastomeric seal.

    Some popular fitting types
    Customized Malleable Iron Pipe Fitting Compression02

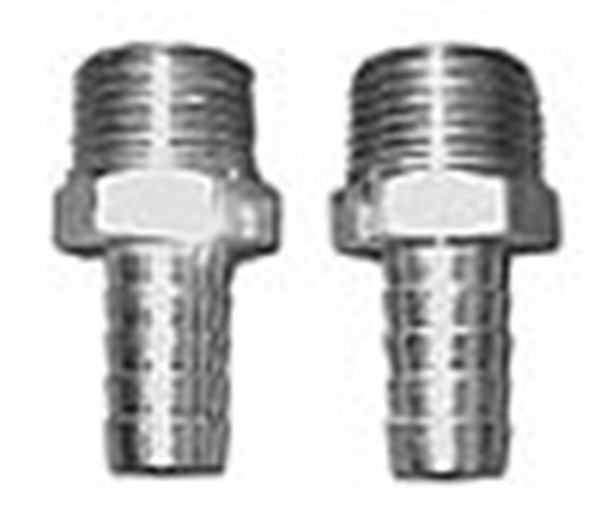

    Barbed Fittings:
    They slide into soft tubing. For low-pressure installations, tubing elasticity holds the tubing onto the fitting.

    Customized Malleable Iron Pipe Fitting Compression03

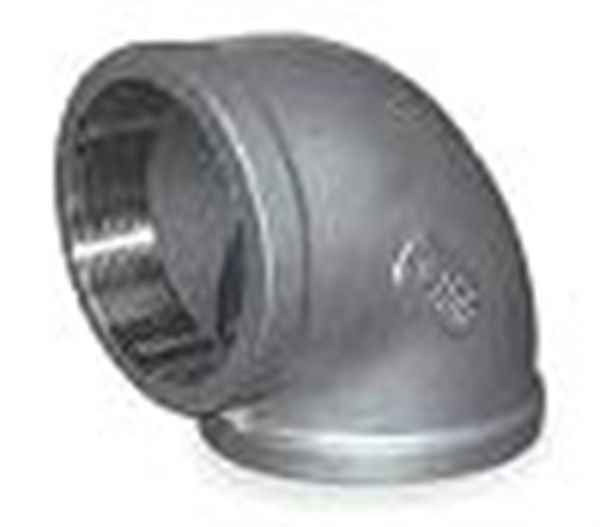

    Threaded Pipe Fittings:
    These are the most commonly used fittings based on certain standards. For instance, there are threaded fittings of pipes in BSP (British Standard Pipe), NPT (National Pipe Taper), UNF (Unified Fine Thread) sizes for permanent, high-pressure pipe connections.

    Customized Malleable Iron Pipe Fitting Compression04

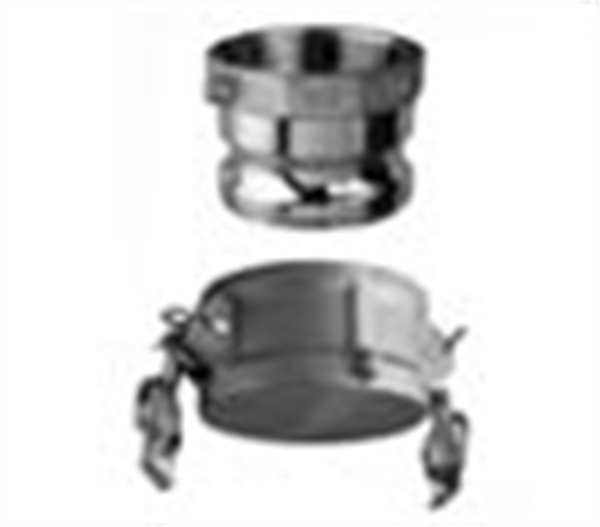

    Cam Fittings:
    They are considered to be quick-disconnecting fittings which are used with pipes and hoses. For instance, you can connect a female coupler to a male adapter and for a secure connection, pull down the arms. These fittings are capable of withstanding high-pressure applications.
