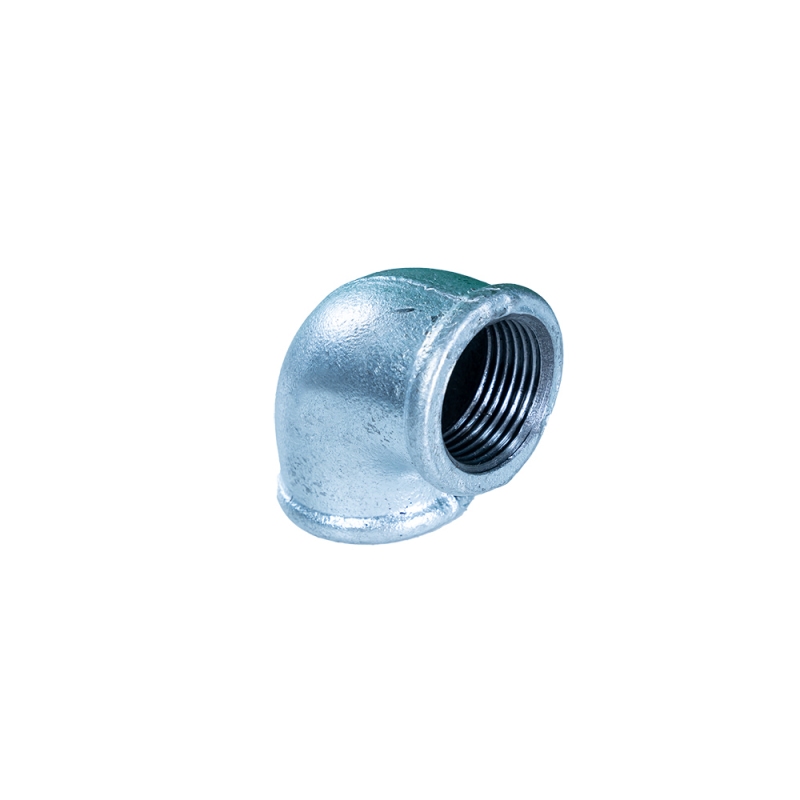

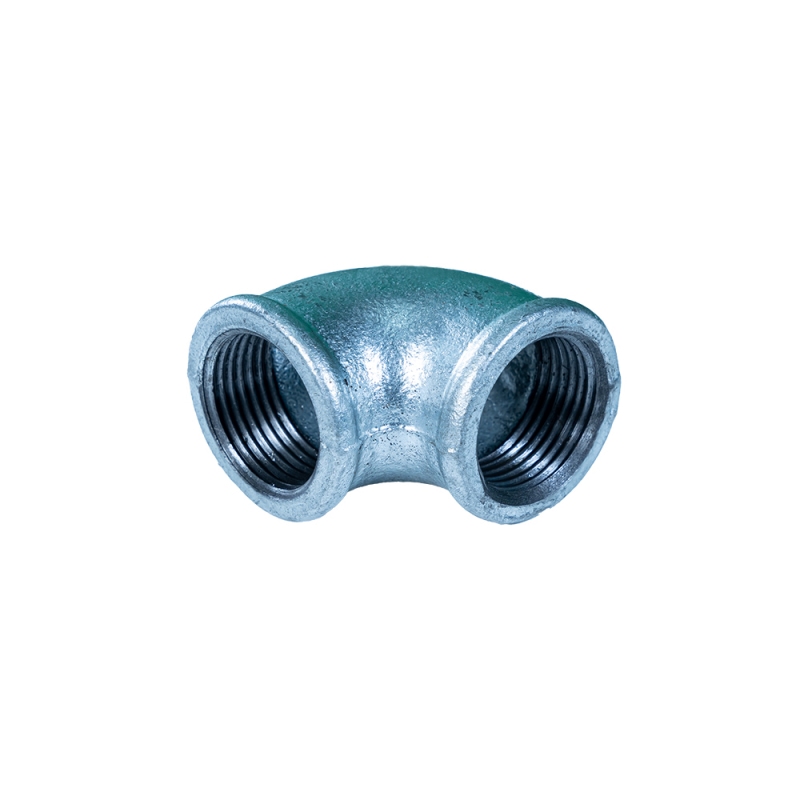

Malleable cast iron 90° elbow is used to connect two pipes by threaded connection, so to make the pipeline turn 90 degree for changing the fluid flow direction.
Category150 Class BS / EN standard Beaded Malleable cast iron pipe fittings
Certificate: UL Listed / FM Approved
Surface: Black iron / hot dip galvanized
End: Beaded
Brand: P and OEM is acceptable
Standard: ISO49/ EN 10242, symbol C
Material: BS EN 1562, EN-GJMB-350-10
Thread: BSPT / NPT
W. pressure: 20 ~ 25 bar, ≤PN25
Tensile Strength: 300 MPA(Minimum)
Elongation:6% Minimum
Zinc Coating: Average 70 um, each fitting ≥63 um
Available Size:
| Item |
Size |
Weight |
| Number |
(Inch) |
KG |
| EL9005 |
1/2 |
0.091 |
| EL9007 |
3/4 |
0.132 |
| EL9010 |
1 |
0.212 |
| EL9012 |
1.1/4 |
0.32 |
| EL9015 |
1.1/2 |
0.457 |
| EL9020 |
2 |
0.83 |
| EL9025 |
2.1/2 |
1.04 |
| EL9030 |
3 |
1.39 |
| EL9040 |
4 |
3.043 |
1.Heavy molds and competitive prices
2.Having accumulating Experience on producing and exporting since 1990s
3.Efficient Service: Replying a Inquiry within 4 hours, fast delivery.
4. Third party certificate, such as UL and FM, SGS.
Keep every pipe fitting that our Clients’ received is qualified.
Q:Are you factory or trading company?
A:We are factory with +30 years history in casting field.
Q: What terms of payment do you support?
A: TTor L/C. 30% payment in advance, and the 70%balance would be
paid before shipment.
Q: How long is your delivery time?
A: 35 days upon receipt of advanced payment.
Q: lt is possible to get samples from your factory?
A: Yes. free samples will be provided.
Q: How many years the products guaranteed?
A: Minimum 1 years.
