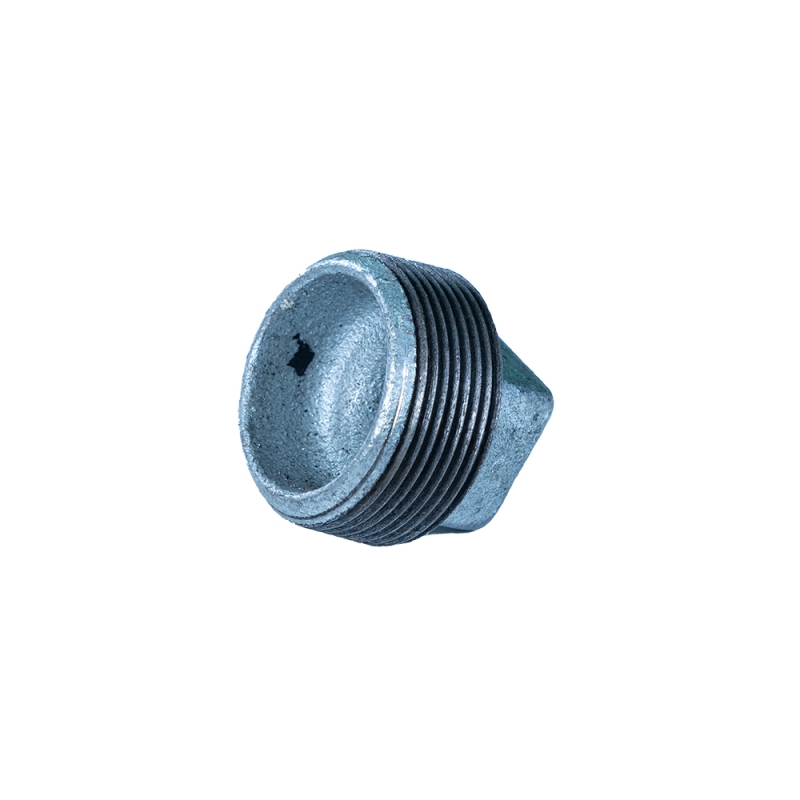

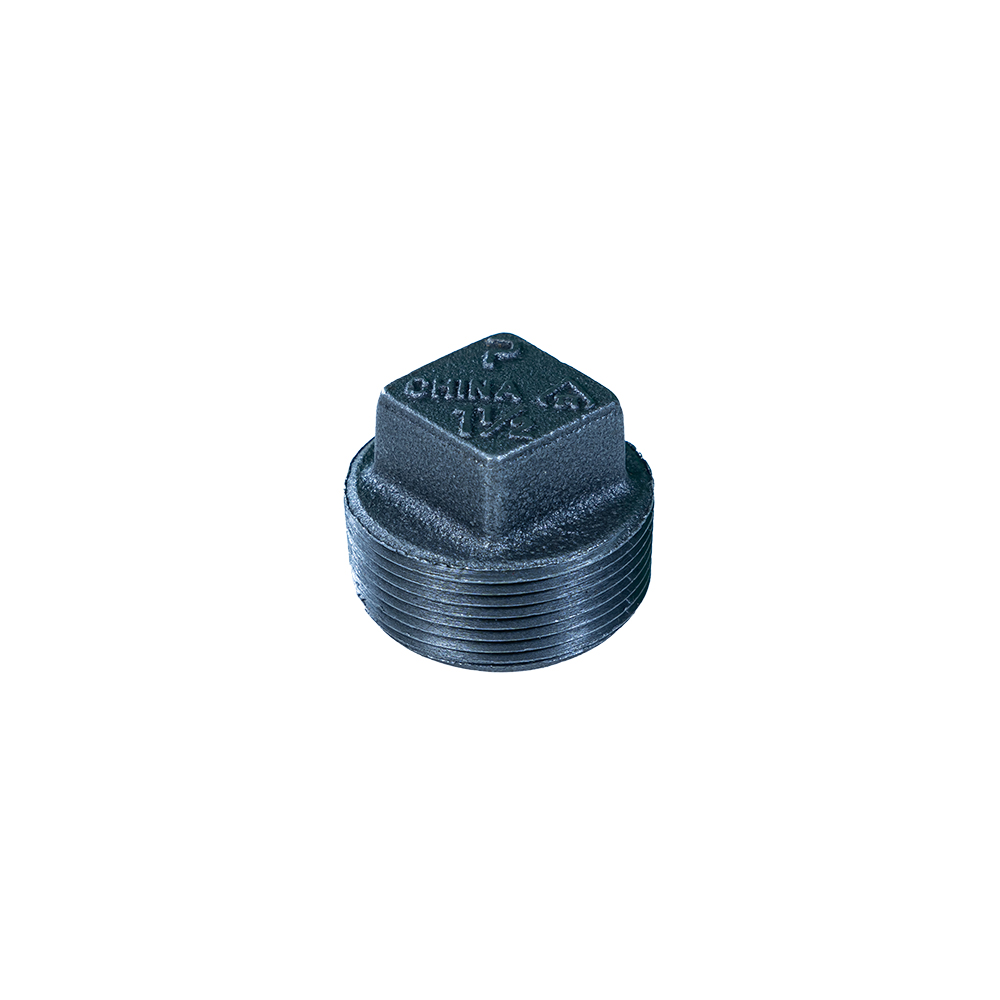

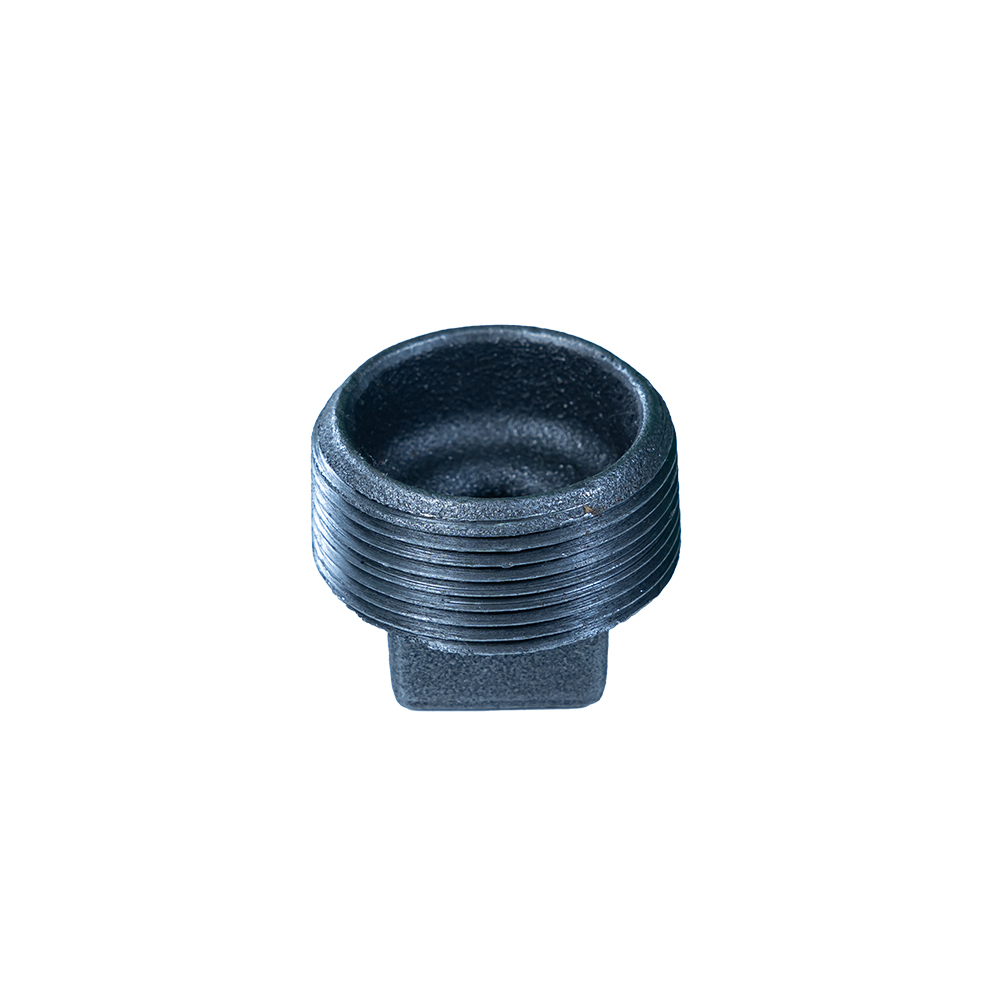

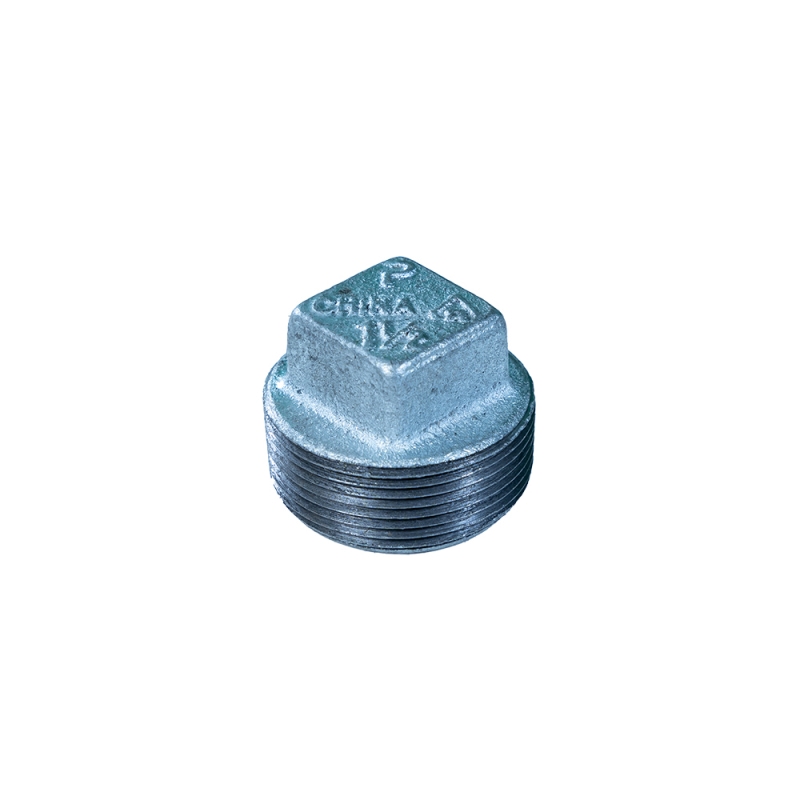

Malleable cast iron plain plug is used to mount at the pipe end by male threaded connection with protruded end at the other side, so to block the pipeline and form liquid or gas tight seal. Plugs are commonly used in residential, commercial, and industrial plumbing and heating systems
|

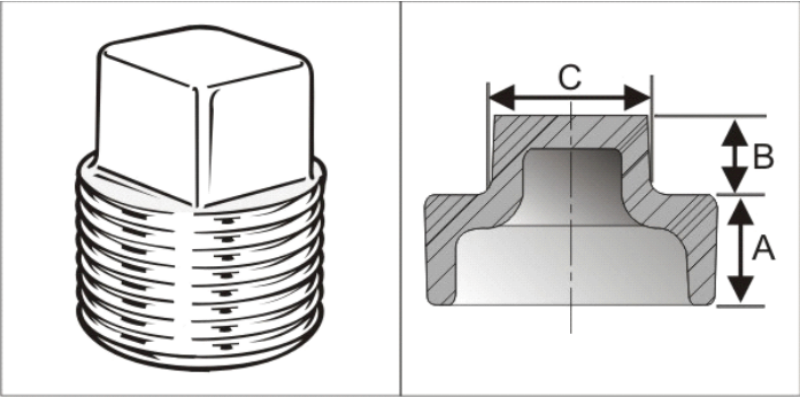

Item |
Size (inch) |
Dimensions |
Case Qty |
Special Case |
Weight |
||||
|
Number |
A | B | C |
Master |
Inner |
Master |
Inner |
(Gram) |
|
| PLG01 | 1/8 | 9.8 | 6.1 | 7.1 |
2400 |
300 |
3600 |
300 |
8.4 |
| PLG02 | 1/4 | 11.6 | 7.1 | 9.5 |
1800 |
150 |
1800 |
150 |
15 |
| PLG03 | 3/8 | 12.6 | 8.0 | 11.0 |
1200 |
100 |
1200 |
100 |
24 |
| PLG05 | 1/2 | 14.7 | 9.7 | 14.3 |
600 |
50 |
600 |
50 |
38 |
| PLG07 | 3/4 | 16.5 | 11.2 | 15.9 |
360 |
30 |
360 |
30 |
45.8 |
| PLG10 | 1 | 19.1 | 12.7 | 20.9 |
240 |
20 |
240 |
20 |
89.5 |
| PLG12 | 1-1/4 | 20.9 | 14.2 | 23.8 |
180 |
45 |
120 |
40 |
153 |
| PLG15 | 1-1/2 | 21.7 | 15.8 | 28.6 |
120 |
40 |
90 |
30 |
217 |
| PLG20 | 2 | 23.2 | 17.3 | 33.3 |
80 |
20 |
60 |
20 |
337 |
| PLG25 | 2-1/2 | 32.0 | 18.8 | 38.1 |
48 |
12 |
32 |
16 |
460 |
| PLG30 | 3 | 29.4 | 20.3 | 42.9 |
32 |
16 |
32 |
16 |
753 |
| PLG40 | 4 | 31.0 | 25.4 | 58.0 |
16 |
8 |
12 |
6 |
1408.3 |
| PLG50 | 5 | 33.3 | 25.4 | 63.5 |
10 |
5 |
8 |
4 |
2882 |
| PLG60 | 6 | 35.6 | 31.8 | 77.0 |
8 |
4 |
6 |
3 |
4835 |
| Threads | NPT & BSP |
| Dimensions | ANSI B 16.3,B16.4, BS21 |
| Size | 1/8"--6" |
| Head Code | Square |
| Testing Pressure | 2.5MPa |
| Working Pressure | 1.6MPa |
| Connection | Male |
| Shape | Equal |
| Certificate | UL, FM, ISO9001 |
| Package | Cartons and Pallet |
1.Q:Are you factory or trading company?
A:We are factory with +30 years history in casting field.
2.Q: What terms of payment do you support?
A: TTor L/C. 30% payment in advance, and the 70%balance would be
paid before shipment.
3.Q: How long is your delivery time?
A: 35 days upon receipt of advanced payment.
