Brief Description
|
Item |
Size (inch) |
Dimensions |
Case Qty |
Special Case |
Weight |
||||
|
Number |

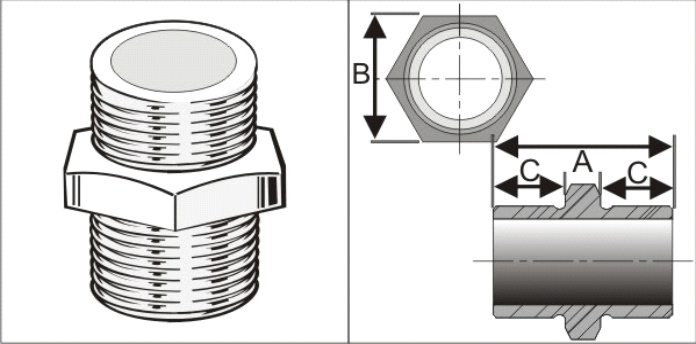

A | B | C |
Master |
Inner |
Master |
Inner |
(Gram) |
|
| NIP02 | 1/4 | 34.0 | 17.0 | 12.0 |
320 |
80 |
320 |
80 |
26 |
| NIP03 | 3/8 | 36.0 | 21.0 | 13.0 |
320 |
80 |
320 |
80 |
52 |
| NIP05 | 1/2 | 45.0 | 27.0 | 18.5 |
320 |
80 |
320 |
80 |
69.6 |
| NIP07 | 3/4 | 48.0 | 32.0 | 19.5 |
320 |
80 |
160 |
80 |
95.3 |
| NIP10 | 1 | 53.0 | 38.0 | 21.5 |
160 |
40 |
80 |
40 |
164 |
| NIP12 | 1-1/4 | 56.0 | 48.0 | 23.0 |
120 |
40 |
60 |
30 |
233.2 |
| NIP15 | 1-1/2 | 60.0 | 55.0 | 24.0 |
100 |
25 |
100 |
25 |
278.7 |
| NIP20 | 2 | 70.0 | 70.0 | 28.0 |
72 |
36 |
72 |
36 |
434.7 |
| NIP25 | 2-1/2 | 76.0 | 85.0 | 31.0 |
40 |
20 |
20 |
10 |
581 |
| NIP30 | 3 | 84.0 | 100.0 | 34.0 |
32 |
16 |
24 |
12 |
817 |
| NIP40 | 4 | 95.0 | 130.0 | 38.5 |
16 |
8 |
8 |
4 |
1266 |
| Material: Malleable iron |
| Technics: Casting |
| Place of Origin: Hebei,China |
| Type: screw pipe fittings |
| Head Code: Square |
| Size: 1/4"~4" |
| Elongation: >8% |
| standard: NPT,BSP |
| Connection: Female |
