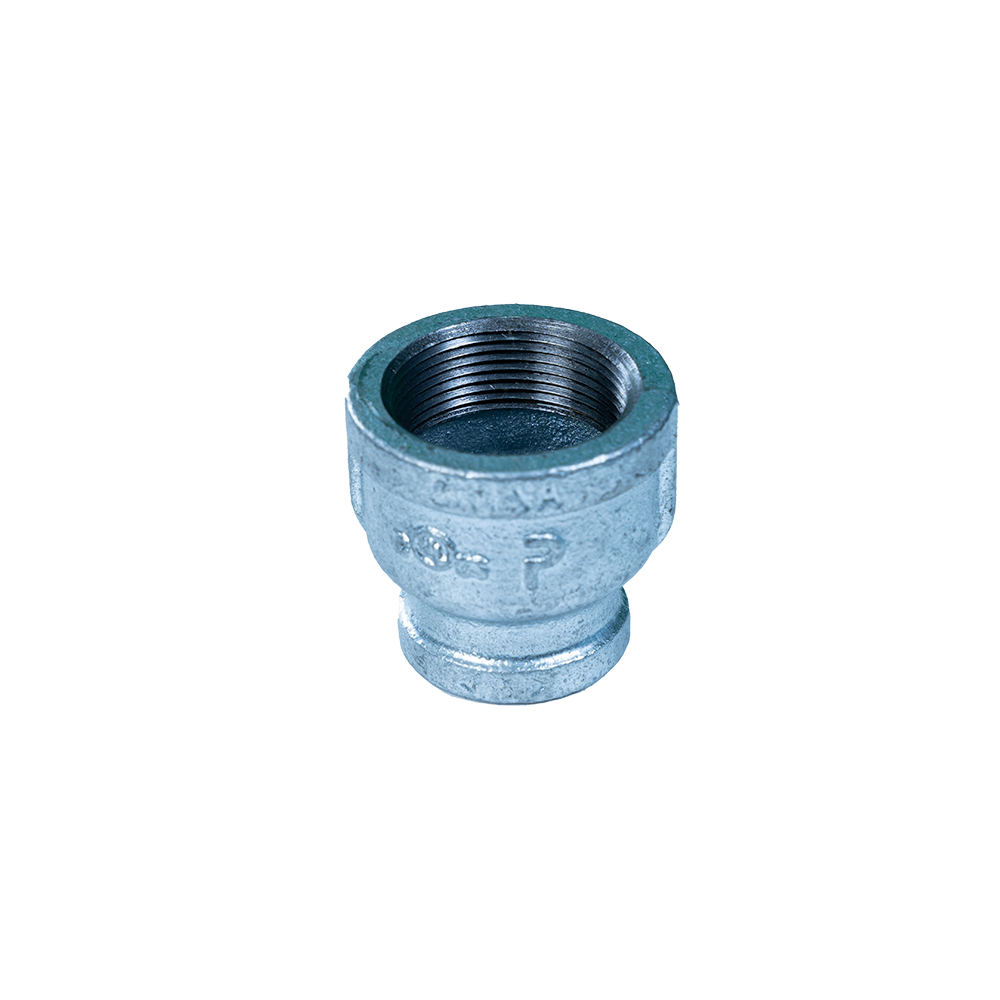

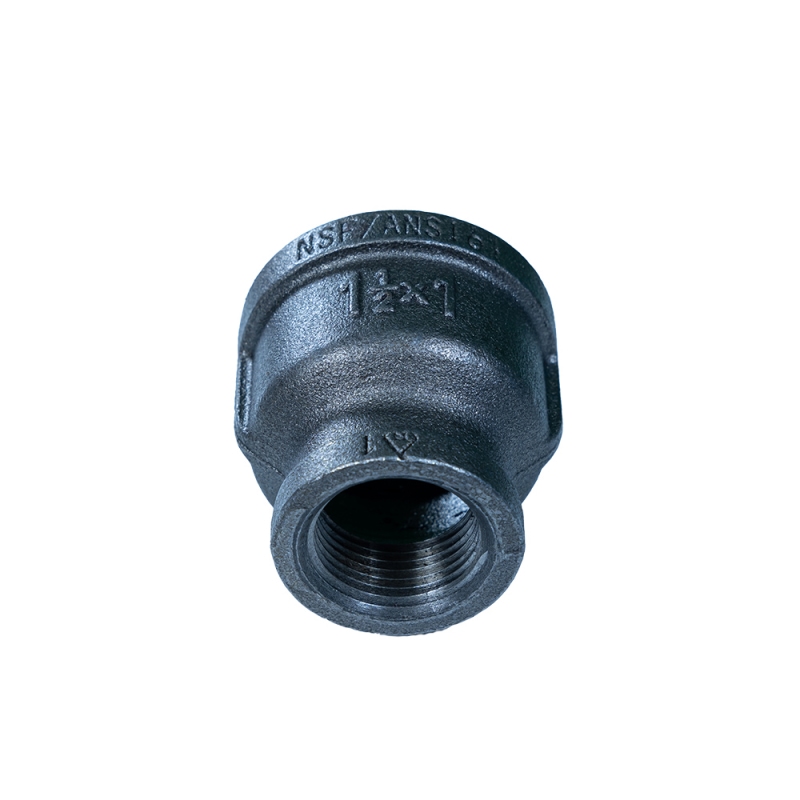

Reducer couplings are plumbing fittings used to connect two pipes of different diameters together, allowing fluid to flow from one pipe to the other. They are used to reduce the size of a pipe and are typically shaped like a cone, with one end having a larger diameter and the other end having a smaller diameter.
|
Item |
Size (inch) |
Dimensions |
Case Qty |
Special Case |
Weight |
||
|
Number |
A |
Master |
Inner |
Master |
Inner |
(Gram) |
|
| RCP0201 | 1/4 X 1/8 | 25.4 |
600 |
50 |
600 |
50 |
32 |
| RCP0301 | 3/8 X 1/8 | 28.7 |
420 |
35 |
420 |
35 |
42.5 |
| RCP0302 | 3/8 X 1/4 | 28.7 |
360 |
30 |
360 |
30 |
50 |
| RCP0501 | 1/2 X 1/8 | 31.8 |
360 |
60 |
300 |
75 |
65 |
| RCP0502 | 1/2 X 1/4 | 31.8 |
360 |
60 |
300 |
75 |
63 |
| RCP0503 | 1/2 X 3/8 | 31.8 |
360 |
60 |
240 |
60 |
71.3 |
| RCP0701 | 3/4 X 1/8 | 36.6 |
300 |
50 |
210 |
70 |
93.3 |
| RCP0702 | 3/4 X 1/4 | 36.6 |
280 |
70 |
180 |
45 |
100 |
| RCP0703 | 3/4 X 3/8 | 36.6 |
280 |
70 |
180 |
45 |
96.3 |
| RCP0705 | 3/4 X 1/2 | 36.6 |
240 |
60 |
180 |
60 |
108.8 |
| RCP1002 | 1 X 1/4 | 42.9 |
180 |
45 |
135 |
45 |
146.7 |
| RCP1003 | 1 X 3/8 | 42.9 |
160 |
40 |
120 |
30 |
170 |
| RCP1005 | 1 X 1/2 | 42.9 |
200 |
50 |
120 |
30 |
138 |
| RCP1007 | 1 X 3/4 | 42.9 |
160 |
40 |
100 |
25 |
167.5 |
| RCP1203 | 1-1/4 X 3/8 | 52.3 |
60 |
20 |
75 |
25 |
381.4 |
| RCP1205 | 1-1/4 X 1/2 | 52.3 |
100 |
25 |
75 |
25 |
249 |
| RCP1207 | 1-1/4 X 3/4 | 52.3 |
90 |
45 |
75 |
25 |
277.8 |
| RCP1210 | 1-1/4 X 1 | 52.3 |
90 |
45 |
60 |
15 |
281 |
| RCP1503 | 1-1/2 X 3/8 | 58.7 |
90 |
45 |
60 |
20 |
300 |
| RCP1505 | 1-1/2 X 1/2 | 58.7 |
80 |
20 |
60 |
20 |
320 |
| RCP1507 | 1-1/2 X 3/4 | 58.7 |
80 |
20 |
60 |
15 |
338.3 |
| RCP1510 | 1-1/2 X 1 | 58.7 |
60 |
20 |
50 |
25 |
353.3 |
| RCP1512 | 1-1/2 X 1-1/4 | 58.7 |
60 |
20 |
48 |
12 |
395.5 |
| RCP2005 | 2 X 1/2 | 71.4 |
48 |
12 |
36 |
12 |
517.8 |
| RCP2007 | 2 X 3/4 | 71.4 |
48 |
12 |
36 |
12 |
523.3 |
| RCP2010 | 2 X 1 | 71.4 |
48 |
12 |
36 |
12 |
535.5 |
| RCP2012 | 2 X 1-1/4 | 71.4 |
48 |
12 |
27 |
9 |
533 |
| RCP2015 | 2 X 1-1/2 | 71.4 |
40 |
20 |
27 |
9 |
614 |
| RCP2505 | 2-1/2 X 1/2 | 82.6 |
30 |
15 |
20 |
10 |
778 |
| RCP2507 | 2-1/2 X 3/4 | 82.6 |
24 |
12 |
20 |
10 |
1059.5 |
| RCP2510 | 2-1/2 X 1 | 82.6 |
30 |
15 |
20 |
10 |
810 |
| RCP2512 | 2-1/2 X 1-1/4 | 82.6 |
24 |
12 |
20 |
10 |
1000 |
| RCP2515 | 2-1/2 X 1-1/2 | 82.6 |
24 |
12 |
14 |
7 |
947.8 |
| RCP2520 | 2-1/2 X 2 | 82.6 |
24 |
12 |
14 |
7 |
1025 |
| RCP3007 | 3 X 3/4 | 93.7 |
24 |
12 |
12 |
6 |
1280 |
| RCP3010 | 3 X 1 | 93.7 |
20 |
10 |
12 |
6 |
1377 |
| RCP3012 | 3 X 1-1/4 | 93.7 |
18 |
6 |
12 |
6 |
1430 |
| RCP3015 | 3 X 1-1/2 | 93.7 |
18 |
6 |
12 |
6 |
1481 |
| RCP3020 | 3 X 2 | 93.7 |
18 |
6 |
12 |
6 |
1475 |
| RCP3025 | 3 X 2-1/2 | 93.7 |
16 |
4 |
10 |
5 |
1650 |
| RCP4015 | 4 X 1-1/2 | 111.3 |
10 |
5 |
6 |
3 |
2465 |
| RCP4020 | 4 X 2 | 111.3 |
10 |
5 |
6 |
3 |
2425 |
| RCP4025 | 4 X 2-1/2 | 111.3 |
10 |
5 |
6 |
3 |
2580 |
| RCP4030 | 4 X 3 | 111.3 |
10 |
5 |
6 |
3 |
2677 |
| RCP5040 | 5 X 4 | 129.0 |
6 |
2 |
4 |
2 |
4493 |
| RCP6030 | 6 X 3 | 147.5 |
4 |
2 |
2 |
1 |
6210 |
| RCP6040 | 6 X 4 | 147.5 |
4 |
2 |
2 |
1 |
5975 |
| RCP6050 | 6 X 5 | 147.5 |
2 |
1 |
1 |
1 |
6632 |
| RCP8060 | 8 X 6 | * |
1 |
1 |
1 |
1 |
14978 |
| Material: Malleable iron |
| Technics: Casting |
| Place of Origin: Hebei,China |
| Brand Name: P |
| Material: ASTM A197 |
| standard: NPT,BSP |
| Size:1/4"-8" |
| Connection: Female |
| Zinc Coating: SI 918,ASTM A 153 |
| Shape: Reduce |
Every piece of fitting must be inspected under strict SOP whatever from initially raw material incoming to product processing to finished products which are 100% water test qualified before they are into our warehouse.
