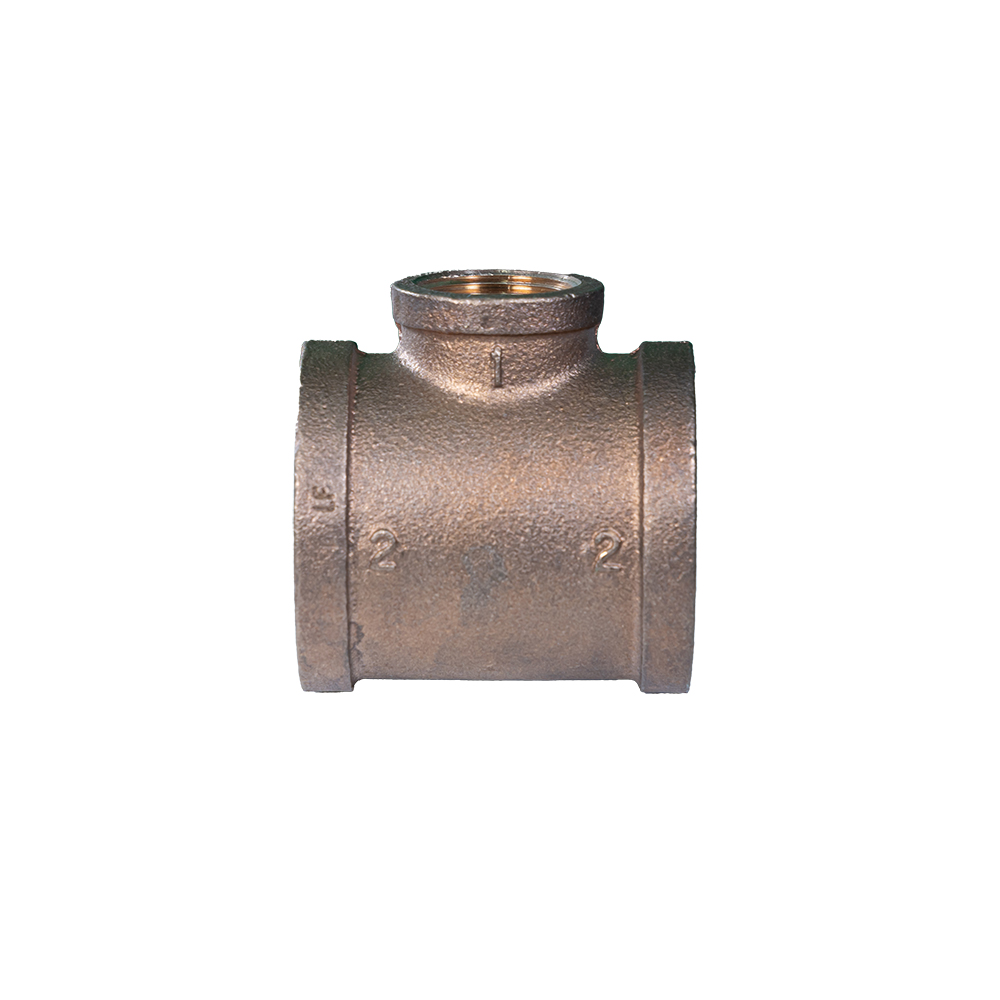

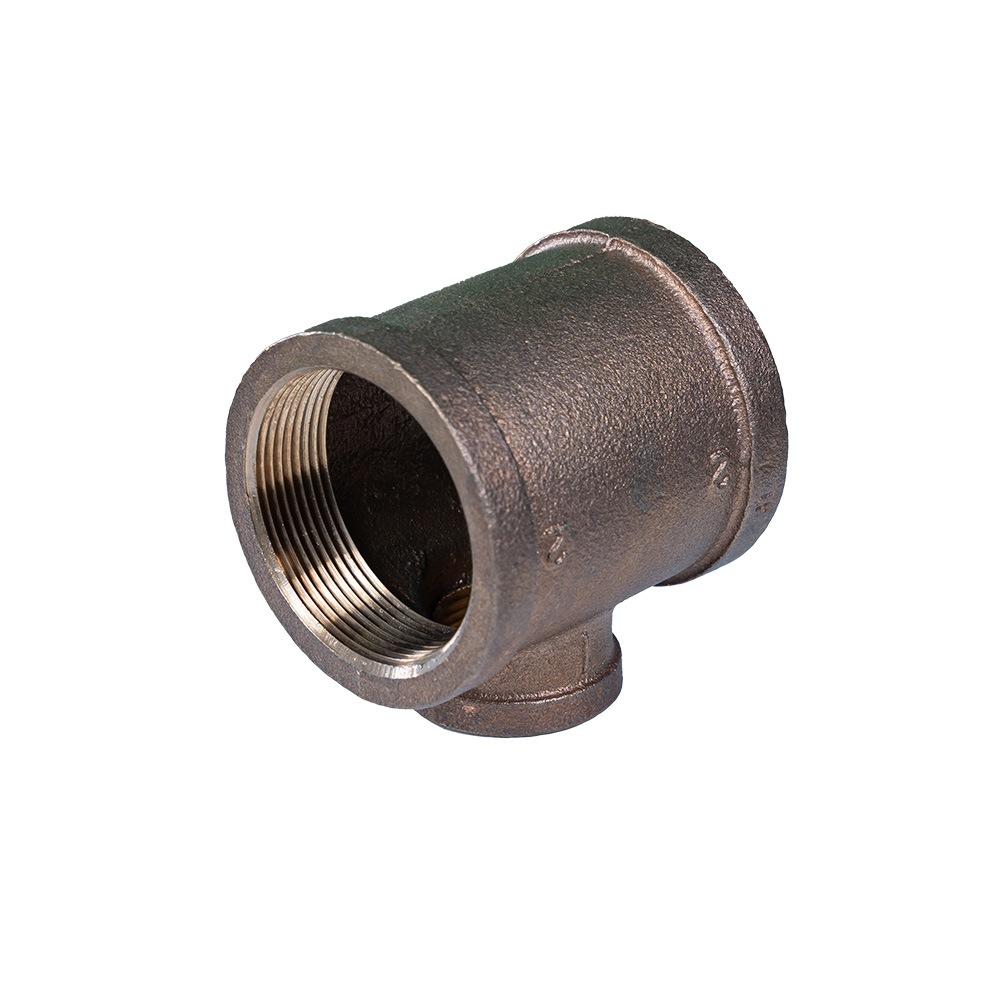

Reducing Tee Cast Bronze Threaded Fittings

Short Description:

Bronze 125# Threaded Reducing Tee，UL Certificated, 100% air tested & Independent lab verification of applicable chemical & physical properties.Hot Sale UL Certified Bronze 125# Threaded Fittings-Reducing Tee is a high performance wire conduit connector with good corrosion resistance, sealing performance and resistance strength. It is made of high-quality vacuum casting copper, and the surface treatment adopts underwater immersion process to make the surface of the product smooth and flat, with excellent wear resistance and impact resistance. In addition, the product can only be sold on the market after it has passed the UL standard and requires careful testing and verification.

Send email to us PDF Download

Details

Tags

Product Attribute

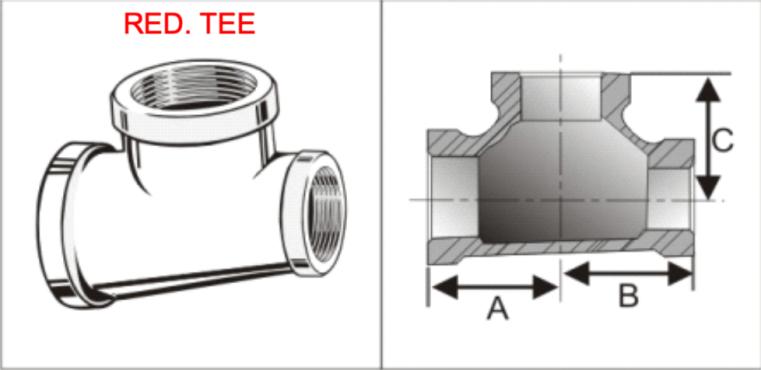

Item	Size (inch)	Dimensions				Case Qty					Special Case
Number	Size (inch)	A	B	C	Master			Inner		Master			Inner
RT3070505	3/4 X 1/2 X 1/2	1.08	1.38	1.38	100		5/bag		100			5/bag
RT3070507	3/4 X 1/2 X 3/4	1.39	1.38	1.39	100		5/bag		100			5/bag
RT3100505	1 X 1/2 X 1/2	1.31	1.22	1.31	50		5/bag		50			5/bag
RT3100507	1 X 1/2 X 3/4	1.30	1.38	1.31	50		5/bag		50			5/bag
RT3100510	1 X 1/2 X 1	1.43	1.24	1.43	50		5/bag		50			5/bag
RT3100705	1 X 3/4 X 1/2	1.20	1.08	1.24	50		5/bag		50			5/bag
RT3100707	1 X 3/4 X 3/4	1.30	1.08	1.31	50		5/bag		50			5/bag
RT3100710	1 X 3/4 X 1	1.50	1.45	1.50	50		5/bag		50			5/bag
RT3120512	1-1/4 X 1/2 X 1-1/4	1.69	1.40	1.69	45		5/bag		45			5/bag
RT3120705	1-1/4 X 3/4 X 1/2	*	*	*	30		5/bag		30			5/bag
RT3120707	1-1/4 X 3/4 X 3/4	*	*	*	30		5/bag		30			5/bag
RT3120712	1-1/4 X 3/4 X 1-1/4	1.69	1.48	1.69	45		5/bag		45			5/bag
RT3121010	1-1/4 X 1 X 1	1.52	1.43	1.60	35		5/bag		35			5/bag
RT3121012	1-1/4 X 1 X 1-1/4	1.69	1.60	1.69	35		5/bag		35			5/bag
RT3150515	1-1/2 X 1/2 X 1-1/2	1.84	1.52	1.84	30		5/bag		30			5/bag
RT3150715	1-1/2 X 3/4 X 1-1/2	*	*	*	20		5/bag		20			5/bag
RT3151010	1-1/2 X 1 X 1	*	*	*	35		5/bag		35			5/bag

1.Technical: Casting	6.Material: ASTM B62,UNS Alloy C83600 ;ASTM B824 C89633
2.Brand:“ P”	7.Fitting Dimensions: ASEM B16.15 Class125
3.Product Cap.: 50Ton/ Mon	8.Threads Standard: NPT conform to ASME B1.20.1
4.Origin:Thailand	9.Elongation: 20% Minimun
5.Application：Jointing Water Pipe	10.Tensile Strength:20.0kg/mm(minimum)
11.Package: Exporting Stardard,Master Carton with Inner boxes Master Cartons:5 layer corrugated paper

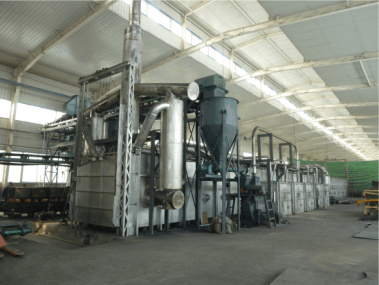

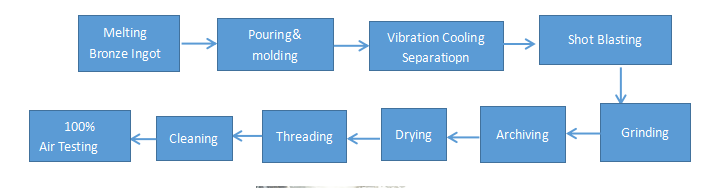

Production Process

Quality Control

We have completely strict quality management system.

Every piece of fitting must be inspected under strict SOP whatever from initially raw material incoming to product processing to finished products which are 100% water test qualified before they are into our warehouse.	1.Raw Material checking，Keeping the Incoming Material Qualified

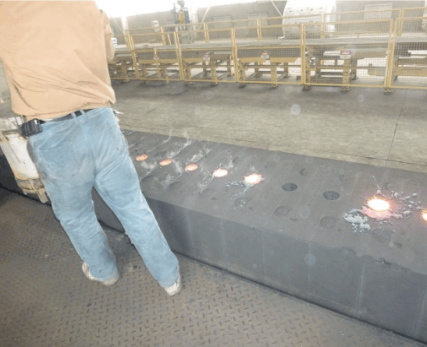

	2. Molding 1).Inspecting the tem. of molten iron. 2.Chemical Composition

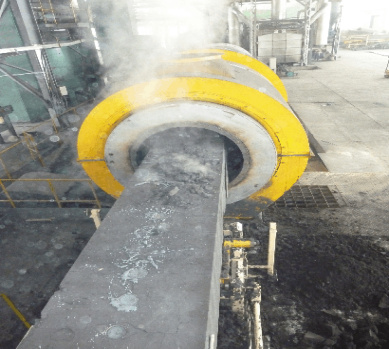

	3.Rotary cooling:After Casting, appearance Inspection
	4.Grinding Appearance checking
	5.Threading In-process checking appearance and threads by Gages.
	6. 100% water Pressure Tested, ensure no leakage
	7.Package:QC Checked if the packed cargoes are the same with the order

Our Slogan

Keep every pipe fitting that our Clients’ received is qualified.

FAQ

Q:Are you factory or trading company?
A:We are factory with +30 years history in casting field.
Q: What terms of payment do you support?
A: TTor L/C. 30% payment in advance, and the 70%balance would be
paid before shipment.
Q: How long is your delivery time?
A: 35 days upon receipt of advanced payment.
Q: lt is possible to get samples from your factory?
A: Yes. free samples will be provided.
Q: How many years the products guaranteed?
A: Minimum 1 years.
