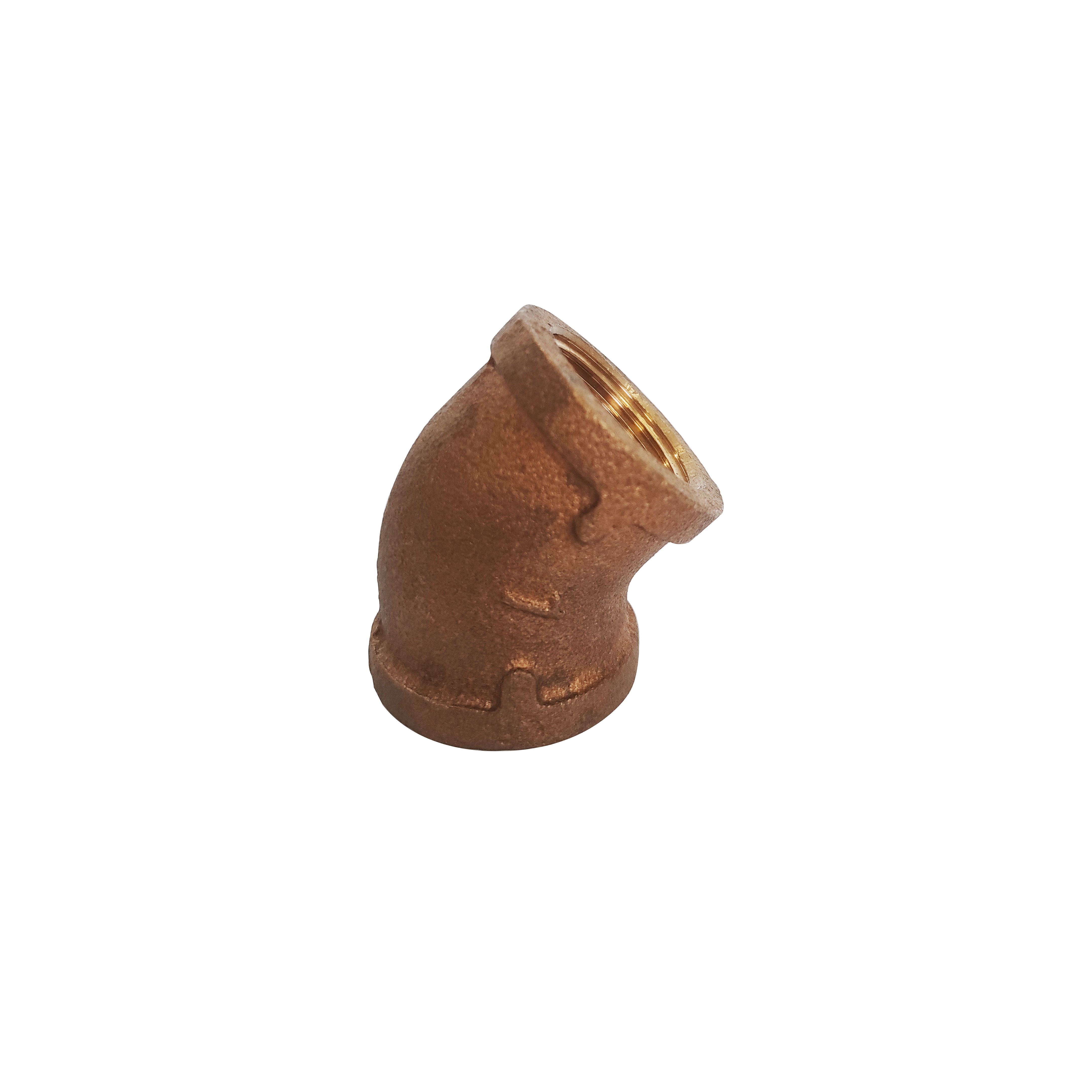

45 Degree Elbow Cast Bronze Threaded Fitting

Short Description:

Excellent corrosion resistance is exhibited by the 125 Class Bronze Fittings, particularly in the presence of air, fresh water, salt water, alkaline solutions, and heated steam.

Cast bronze can also develop a dense SnO2 film, which has an excellent protective effect, and is used extensively in pumps, valves, water supply and drainage pipelines, and maritime equipment.

Send email to us PDF Download

Details

Tags

Product Attribute

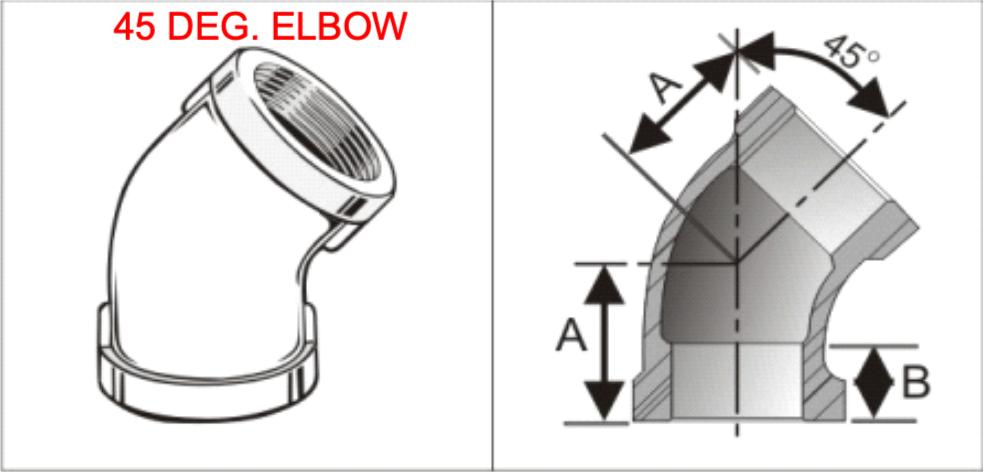

Item	Size (inch)	Dimensions						Case Qty					Special Case			Weight
Number		A	B	Master		Inner			Master		Inner			(Gram)
L4501	1/8	0.42	0.26		600		5/bag			600		5/bag			34.2
L4502	1/4	0.56	0.35		300		5/bag			300		5/bag			48.5
L4503	3/8	0.63	0.37		300		5/bag			300		5/bag			75
L4505	1/2	0.78	0.45		200		5/bag			200		5/bag			94
L4507	3/4	0.89	0.52		100		5/bag			100		5/bag			151.3
L4510	1	1.06	0.62		75		5/bag			75		5/bag			245.8
L4512	1-1/4	1.22	0.67		50		5/bag			50		5/bag			380.5
L4515	1-1/2	1.30	0.70		40		5/bag			40		5/bag			499.2
L4520	2	1.45	0.75		25		5/bag			25		5/bag			691.6
L4525	2-1/2	1.95	0.92		12		1/bag			12		1/bag			1420
L4530	3	2.17	0.98		8		1/bag			8		1/bag			2185
L4540	4	2.61	1.38		4		1/bag			4		1/bag			3670

1.Technical: Casting	6.Material: ASTM B62,UNS Alloy C83600 ;ASTM B824 C89633
2.Brand:“ P”	7.Fitting Dimensions: ASEM B16.15 Class125
3.Product Cap.: 50Ton/ Mon	8.Threads Standard: NPT conform to ASME B1.20.1
4.Origin:Thailand	9.Elongation: 20% Minimun
5.Application：Jointing Water Pipe	10.Tensile Strength:20.0kg/mm(minimum)
11.Package: Exporting Stardard,Master Carton with Inner boxes Master Cartons:5 layer corrugated paper

Production Process

Quality Control

We have completely strict quality management system.

Every piece of fitting must be inspected under strict SOP whatever from initially raw material incoming to product processing to finished products which are 100% water test qualified before they are into our warehouse.	1.Raw Material checking，Keeping the Incoming Material Qualified
	2. Molding 1).Inspecting the tem. of molten iron. 2.Chemical Composition
	3.Rotary cooling:After Casting, appearance Inspection
	4.Grinding Appearance checking
	5.Threading In-process checking appearance and threads by Gages.
	6. 100% water Pressure Tested, ensure no leakage
	7.Package:QC Checked if the packed cargoes are the same with the order

Mode	Cu%	Zn%	Pb%	Sn%
C83600	84.6~85.5	4.7~5.3	4.6~5.2	4.7~5.1

Our Slogan

Keep every pipe fitting that our Clients’ received is qualified.

FAQ

Q:Are you factory or trading company?
A:We are factory with +30 years history in casting field.
Q: What terms of payment do you support?
A: TTor L/C. 30% payment in advance, and the 70%balance would be
paid before shipment.
Q: How long is your delivery time?
A: 35 days upon receipt of advanced payment.
Q: lt is possible to get samples from your factory?
A: Yes. free samples will be provided.
Q: How many years the products guaranteed?
A: Minimum 1 years.
