Brief Description

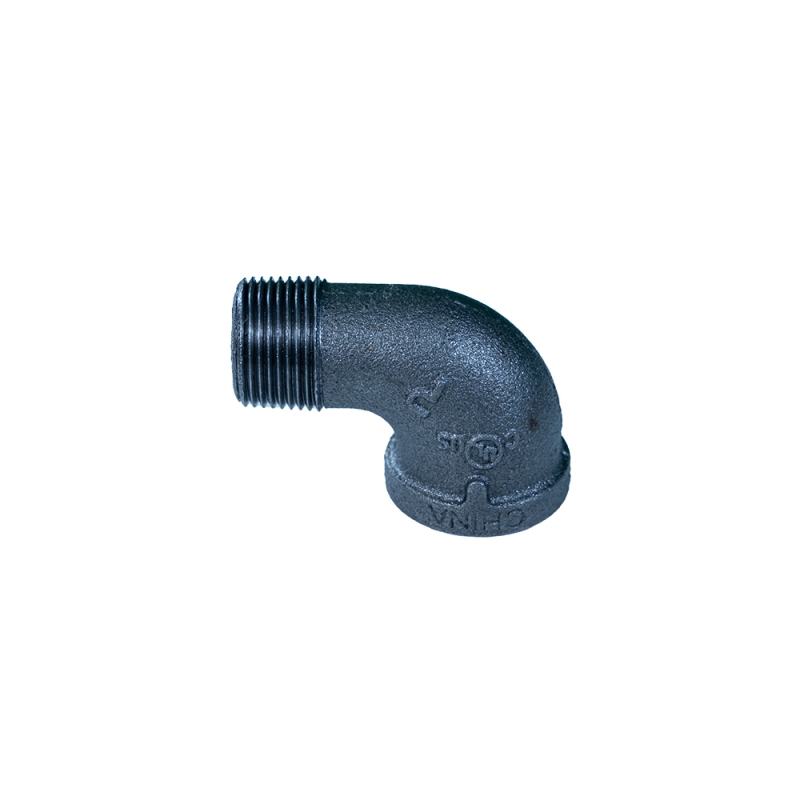

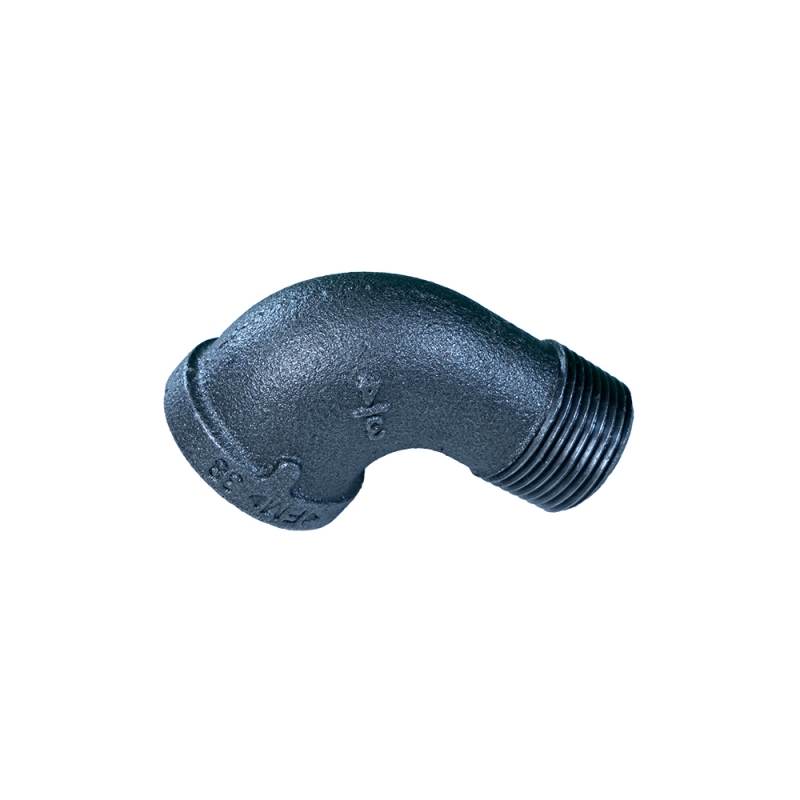

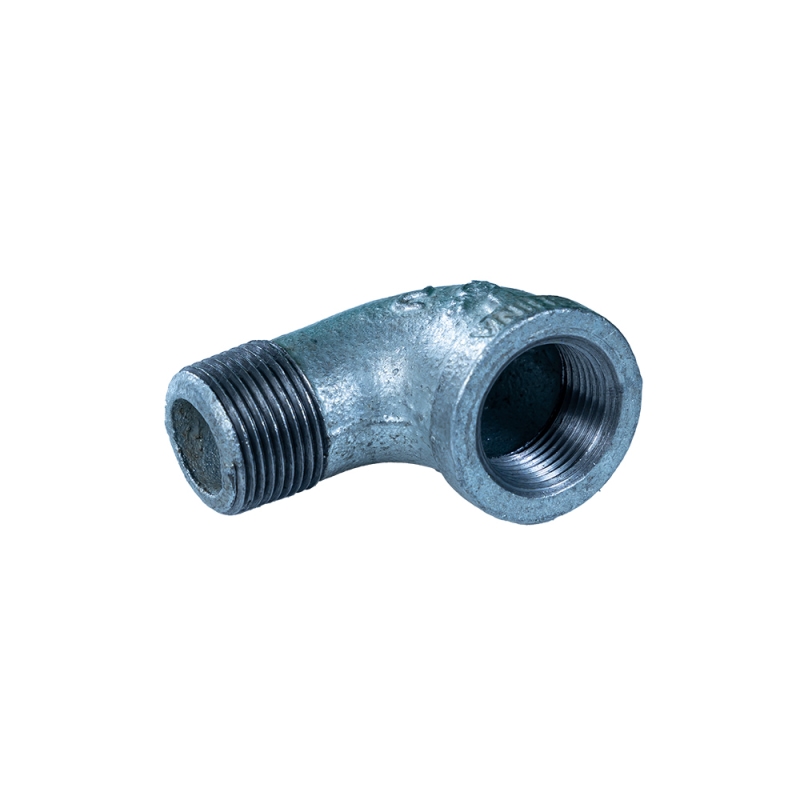

Street elbows 90 are plumbing fittings used to connect two pipes at a 90-degree angle, allowing fluid to flow from one pipe to the other. Street elbows 90 are usually used in outdoor plumbing ,oil, heating systems and other filed.
|
Item |
Size (inch) |
Dimensions |
Case Qty |
Special Case |
Weight |
|||
|
Number |

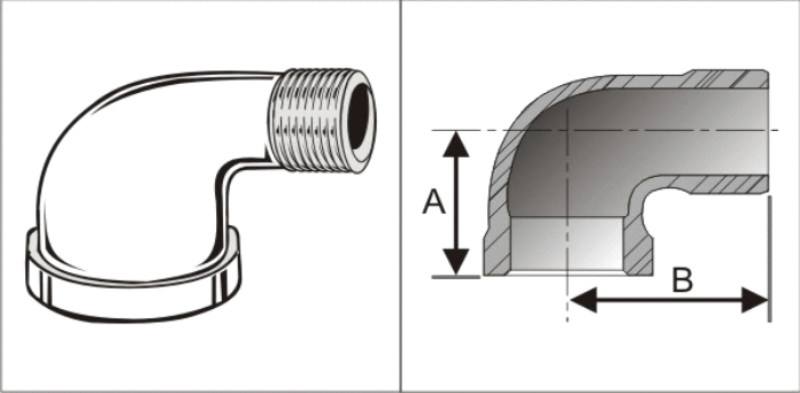

A | B |
Master |
Inner |
Master |
Inner |
(Gram) |
|
| S9001 | 1/8 | 17.5 | 25.4 |
720 |
60 |
720 |
60 |
26.1 |
| S9002 | 1/4 | 20.2 | 29.6 |
420 |
35 |
420 |
35 |
41.7 |
| S9003 | 3/8 | 24.1 | 37.6 |
400 |
80 |
240 |
60 |
67.8 |
| S9005 | 1/2 | 27.9 | 40.4 |
280 |
70 |
180 |
60 |
88.8 |
| S9007 | 3/4 | 32.6 | 47.0 |
150 |
50 |
105 |
35 |
178 |
| S9010 | 1 | 37.3 | 53.3 |
80 |
20 |
90 |
45 |
279 |
| S9012 | 1-1/4 | 44.5 | 65.2 |
60 |
30 |
50 |
25 |
442 |
| S9015 | 1-1/2 | 48.3 | 66.9 |
42 |
21 |
27 |
9 |
616 |
| S9020 | 2 | 56.1 | 81.4 |
30 |
10 |
16 |
8 |
914 |
| S9025 | 2-1/2 | 67.2 | 96.0 |
16 |
8 |
10 |
5 |
1556.7 |
| S9030 | 3 | 76.6 | 112.3 |
10 |
5 |
8 |
8 |
2430 |
| S9040 | 4 | 94.4 | 141.6 |
6 |
2 |
4 |
4 |
4240 |
| S9050 | 5 | 114.3 | 174.2 |
4 |
1 |
2 |
1 |
5500 |
| S9060 | 6 | 130.3 | 204.0 |
2 |
1 |
1 |
1 |
9250 |
Brief Description
| Threads | NPT & BSP |
| Dimensions | ANSI B 16.3,B16.4, BS21 |
| Size | 1/8"--6" |
| Class | 150LB |
| Testing Pressure | 2.5MPa |
| Working Pressure | 1.6MPa |
| Connection | Male and Female |
| Shape | Equal |
| Certificate | UL, FM, ISO9001 |
| Package | Cartons and Pallet |
