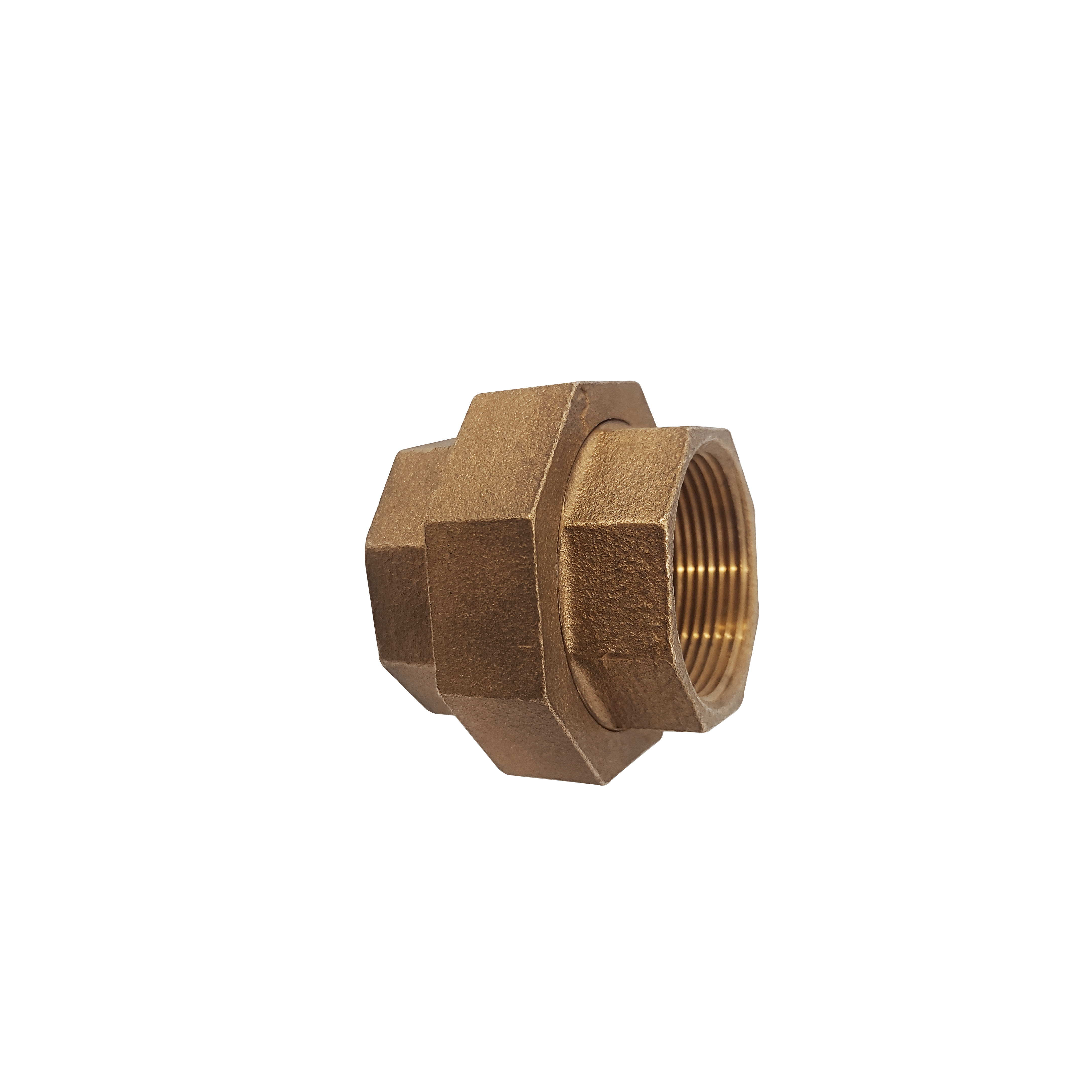

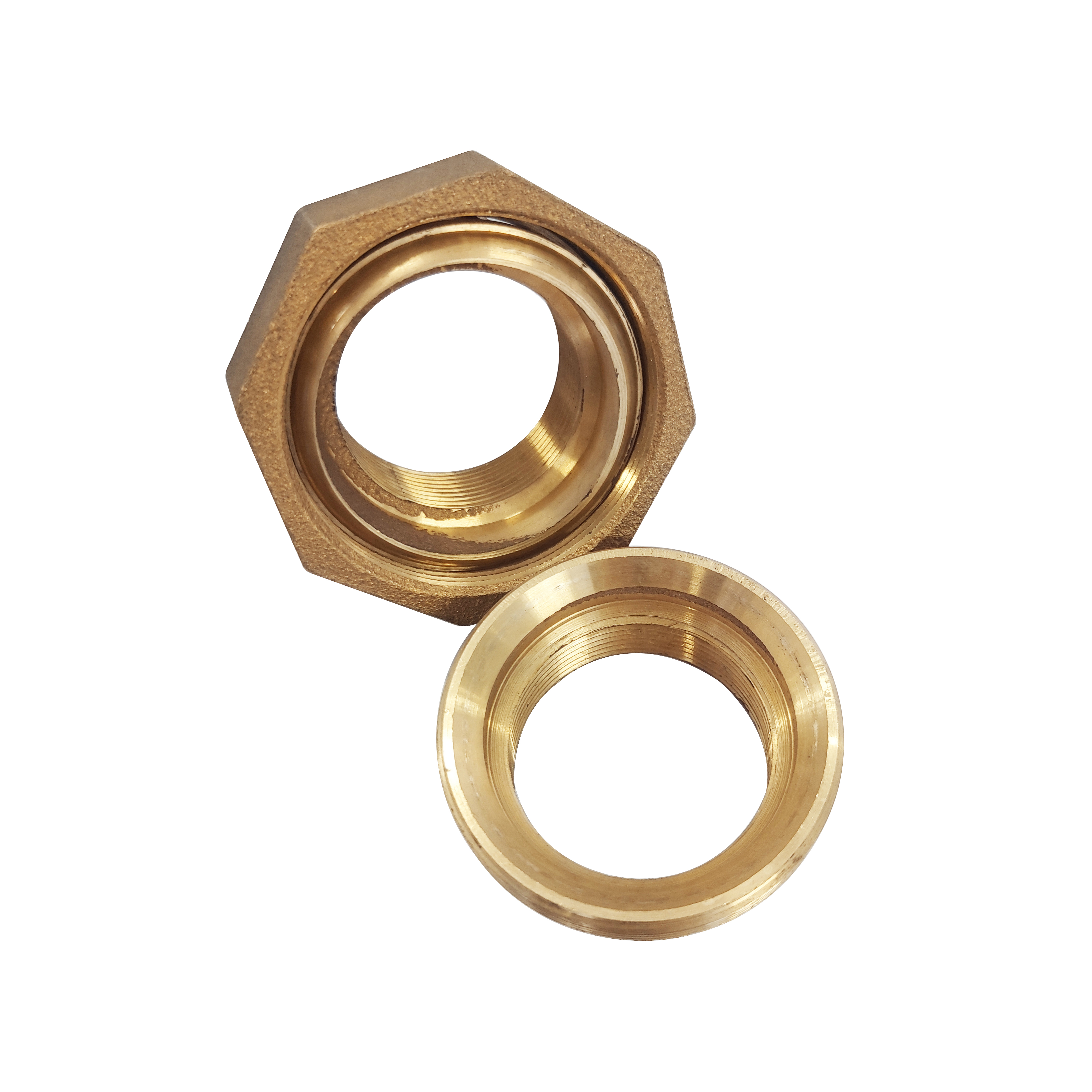

High Quality Cast Bronze Union

Short Description:

Bronze 125LBS Threaded Union with UL Certification, 100% air testing, and conform to specification A-A-59617.Hot Sale 125 Class Cast Bronze Threaded Fitting-Union is a high-quality hot sale product, it is made of high-quality bronze material, which has the characteristics of corrosion resistance, good wear resistance and exquisite appearance. This product is mainly used for the connection of water, sewage, natural gas and various industrial fluids, and it can effectively ensure the sealing of the connection part. In addition, Hot Sale 125 Class Cast Bronze Threaded Fitting-Union also has excellent processing technology, the surface is smooth and flat without obvious cracks. Usually, the user only needs to connect the two ends of the product to achieve the required sealing connection. Hot Sale 125 Class Cast Bronze Threaded Fitting-Union is not only light in weight and easy to install, convenient and quick to use, but also has excellent performance; it is also widely used because of its good surface gloss and excellent chemical resistance.

Send email to us PDF Download

Details

Tags

Product Attribute

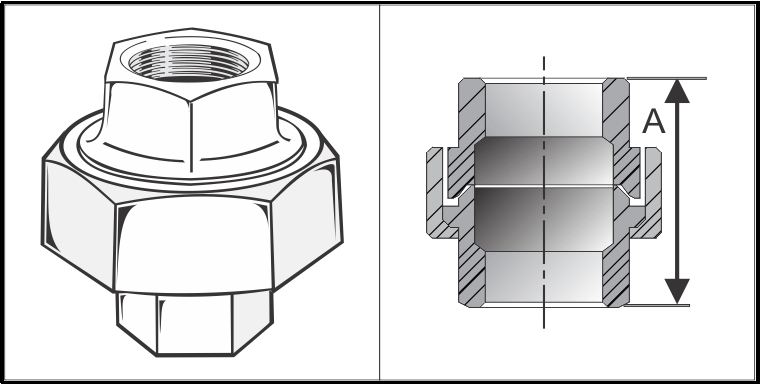

Item	Size (inch)	Dimensions					Case Qty				Special Case				Weight
Number	Size (inch)	A	B	C	Master			Inner	Master			Inner	(Gram)
UNI01	1/8	1.26				300		5/bag		300		5/bag		72.7
UNI02	1/4	1.44				150		5/bag		150		5/bag		113.8
UNI03	3/8	1.61				150		5/bag		150		5/bag		165
UNI05	1/2	1.72				75		5/bag		75		5/bag		214
UNI07	3/4	1.84				75		5/bag		75		5/bag		320
UNI10	1	2.06				40		5/bag		40		5/bag		467
UNI12	1-1/4	2.26				35		5/bag		35		5/bag		717
UNI15	1-1/2	2.41				25		5/bag		25		5/bag		910
UNI20	2	2.75				15		5/bag		15		5/bag		1390
UNI25	2-1/2	3.22				10		1/bag		10		1/bag		2328.3
UNI30	3	4.00				8		1/bag		8		1/bag		3067.5
UNI40	4	3.85				3		1/bag		3		1/bag		5442.5

1.Technical: Casting	6.Material: ASTM B62,UNS Alloy C83600 ;ASTM B824 C89633
2.Brand:“ P”	7.Fitting Dimensions: ASEM B16.15 Class125
3.Product Cap.: 50Ton/ Mon	8.Threads Standard: NPT conform to ASME B1.20.1
4.Origin:Thailand	9.Elongation: 20% Minimun
5.Application：Jointing Water Pipe	10.Tensile Strength:20.0kg/mm(minimum)
11.Package: Exporting Stardard,Master Carton with Inner boxes Master Cartons:5 layer corrugated paper

Production Process

Quality Control

We have completely strict quality management system.

Every piece of fitting must be inspected under strict SOP whatever from initially raw material incoming to product processing to finished products which are 100% water test qualified before they are into our warehouse.	1.Raw Material checking，Keeping the Incoming Material Qualified
	2. Molding 1).Inspecting the tem. of molten iron. 2.Chemical Composition
	3.Rotary cooling:After Casting, appearance Inspection
	4.Grinding Appearance checking
	5.Threading In-process checking appearance and threads by Gages.
	6. 100% water Pressure Tested, ensure no leakage
	7.Package:QC Checked if the packed cargoes are the same with the order

Our Slogan

Keep every pipe fitting that our Clients’ received is qualified.

FAQ

Q:Are you factory or trading company?
A:We are factory with +30 years history in casting field.
Q: What terms of payment do you support?
A: TTor L/C. 30% payment in advance, and the 70%balance would be
paid before shipment.
Q: How long is your delivery time?
A: 35 days upon receipt of advanced payment.
Q: lt is possible to get samples from your factory?
A: Yes. free samples will be provided.
Q: How many years the products guaranteed?
A: Minimum 1 years.
