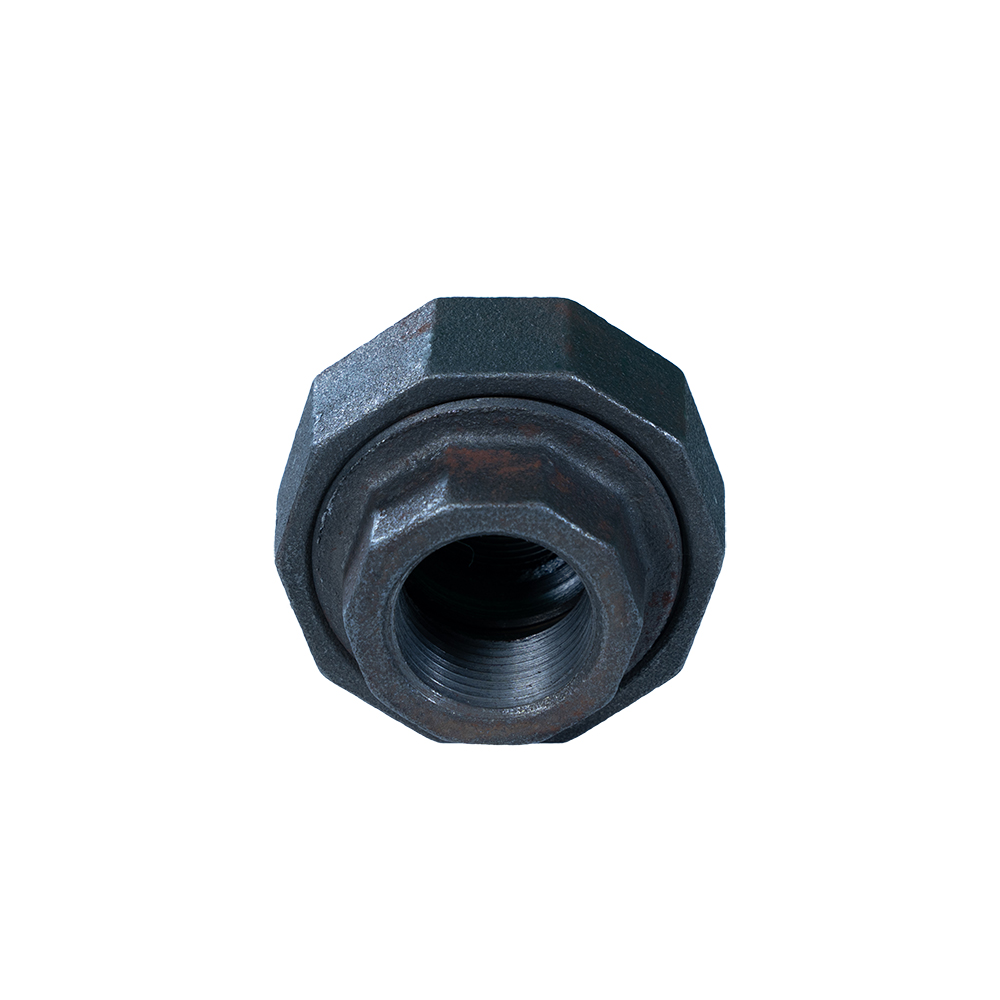

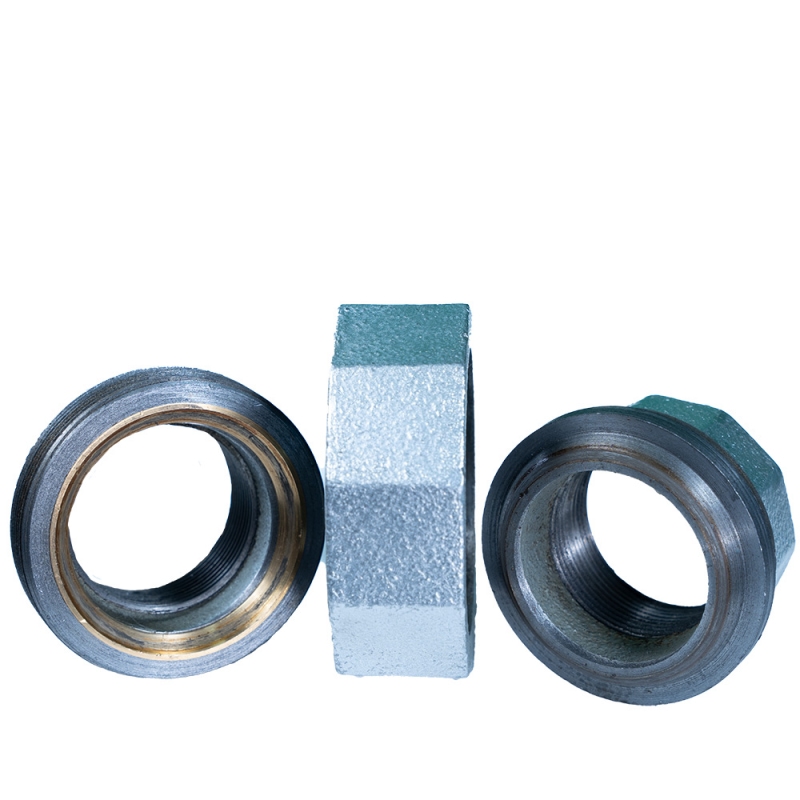

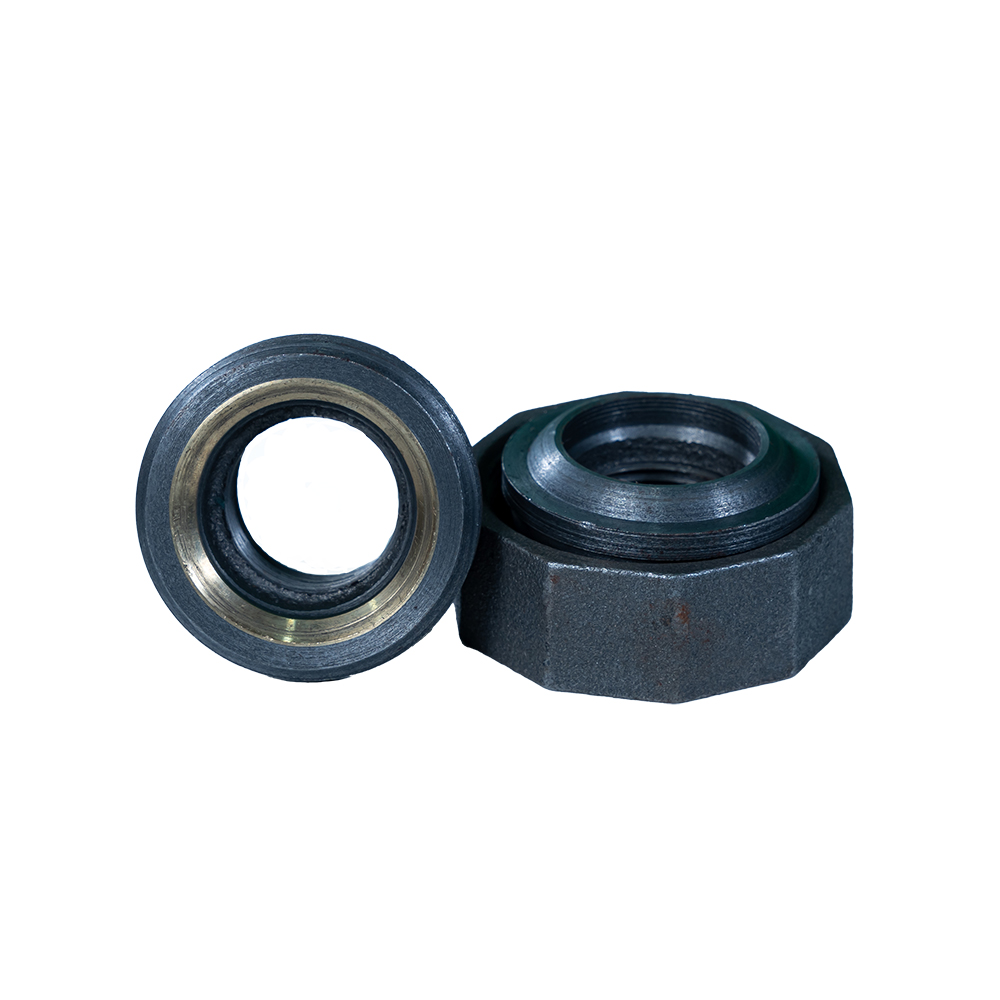

Malleable cast iron union is a detachable fitting with both female threaded connections. It consists of a tail or male part, a head or female part, and a union nut, with flat seat or taper seat
|
Item |
Size (inch) |
Dimensions |
Case Qty |
Special Case |
Weight |
|||||
|
Number |
A | B | C |
Master |
Inner |
Master |
Inner |
(Gram) |
||
| UNI01 | 1/8 | 14.0 | 16.5 | 17.5 |
360 |
30 |
240 |
60 |
63.3 |
|
| UNI02 | 1/4 | 15.5 | 18.5 | 20.3 |
240 |
20 |
240 |
20 |
98.9 |
|
| UNI03 | 3/8 | 16.0 | 21.0 | 22.8 |
180 |
60 |
160 |
40 |
145 |
|
| UNI05 | 1/2 | 17.0 | 23.0 | 25.3 |
120 |
40 |
100 |
50 |
192.8 |
|
| UNI07 | 3/4 | 18.0 | 25.5 | 27.8 |
96 |
24 |
70 |
35 |
281.5 |
|
| UNI10 | 1 | 20.0 | 27.0 | 30.0 |
60 |
15 |
40 |
20 |
404 |
|
| UNI12 | 1-1/4 | 24.0 | 30.0 | 35.0 |
42 |
21 |
30 |
15 |
625 |
|
| UNI15 | 1-1/2 | 25.5 | 33.0 | 38.0 |
32 |
8 |
20 |
10 |
790.5 |
|
| UNI20 | 2 | 27.0 | 37.0 | 41.0 |
20 |
5 |
12 |
6 |
1181 |
|
| UNI25 | 2-1/2 | 29.5 | 42.0 | 45.0 |
12 |
6 |
8 |
4 |
2071.7 |
|
| UNI30 | 3 | 32.5 | 47.0 | 50.0 |
10 |
5 |
8 |
4 |
2752 |
|
| UNI40 | 4 | 39.0 | 58.0 | 60.5 |
5 |
1 |
4 |
2 |
5027.8 |
|
| UNI60 | 6 | * | * | * |
3 |
1 |
2 |
1 |
10459 |
|
| Brand Name: P |
| Material: iron |
| Technics:Casting |
| Dimensions: ANSI B 16.3 |
| Threads: NPT/ BSP |
| Connection: Female |
| Head code: Hexagon |
| Color: Black ；Galvanized |
