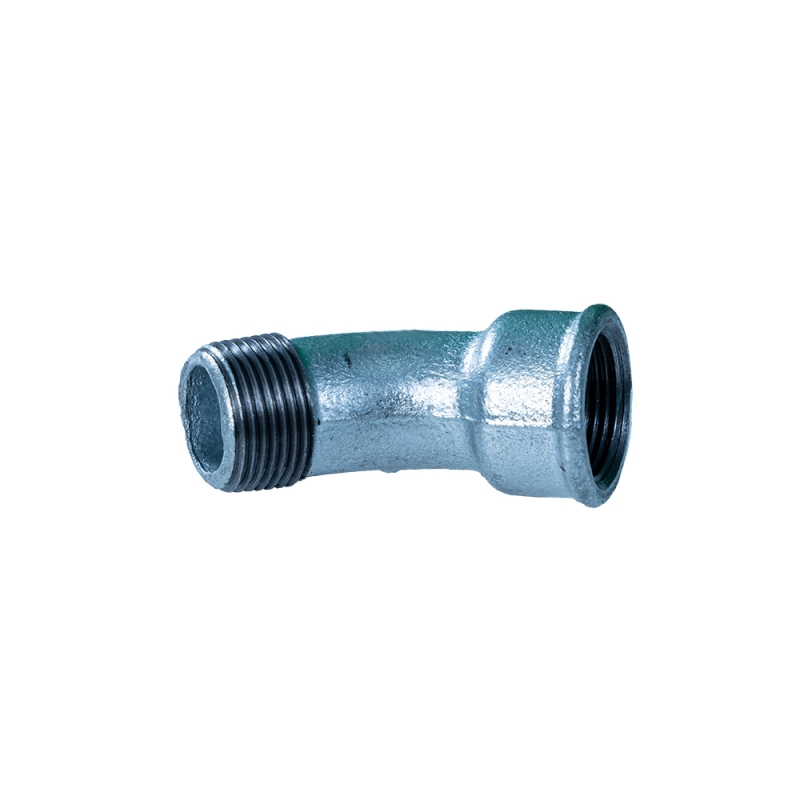

The 45° male and female long sweep bend made of malleable cast iron is identical to the 45° male and female elbow but has a larger radius to prevent the pipeline from turning suddenly.
Category150 Class BS / EN standard Beaded Malleable cast iron pipe fittings
Certificate: UL Listed / FM Approved
Surface: Black iron / hot dip galvanized
End: Beaded
Brand: P and OEM is acceptable
Standard: ISO49/ EN 10242, symbol C
Material: BS EN 1562, EN-GJMB-350-10
Thread: BSPT / NPT
W. pressure: 20 ~ 25 bar, ≤PN25
Tensile Strength: 300 MPA(Minimum)
Elongation:6% Minimum
Zinc Coating: Average 70 um, each fitting ≥63 um
Available Size:
Item |
Size |
Weight |
Number |
(Inch) |
KG |
EBSL4505 |
1/2 |
0.087 |
EBSL4507 |
3/4 |
0.155 |
EBSL4510 |
1 |
0.234 |
EBSL4512 |
1.1/4 |
0.405 |
EBSL4515 |
1.1/2 |
0.506 |
1.Heavy molds and competitive prices
2.Having accumulating Experience on producing and exporting since 1990s
3.Efficient Service: Replying a Inquiry within 4 hours, fast delivery.
4. Third party certificate, such as UL and FM, SGS.


Keep every pipe fitting that our Clients’ received is qualified.
Q:Are you factory or trading company?
A:We are factory with +30 years history in casting field.
Q: What terms of payment do you support?
A: TTor L/C. 30% payment in advance, and the 70%balance would be
paid before shipment.
Q: How long is your delivery time?
A: 35 days upon receipt of advanced payment.
Q: lt is possible to get samples from your factory?
A: Yes. free samples will be provided.
Q: How many years the products guaranteed?
A: Minimum 1 years.
