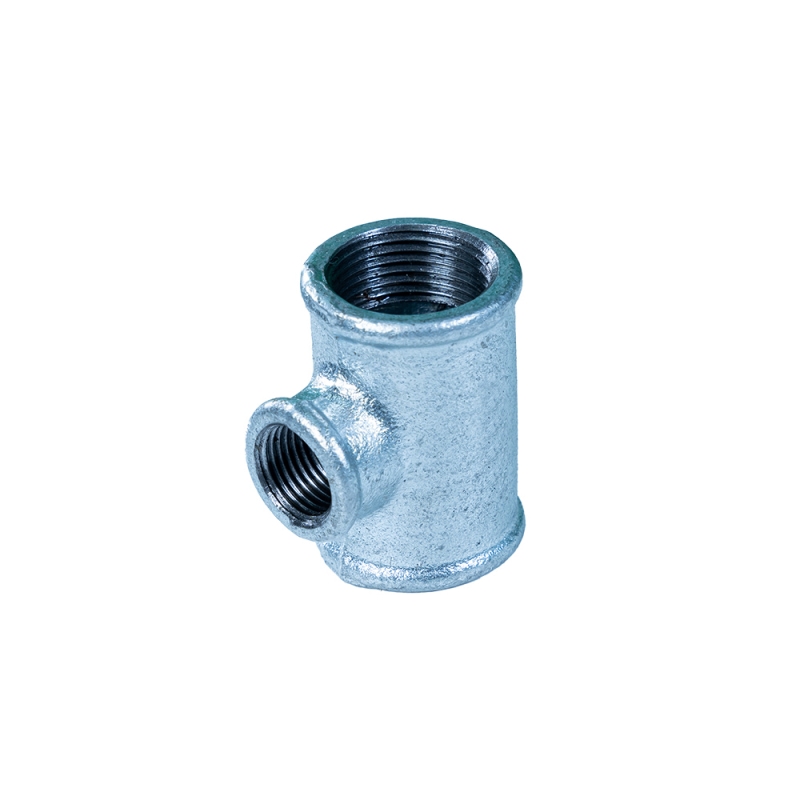

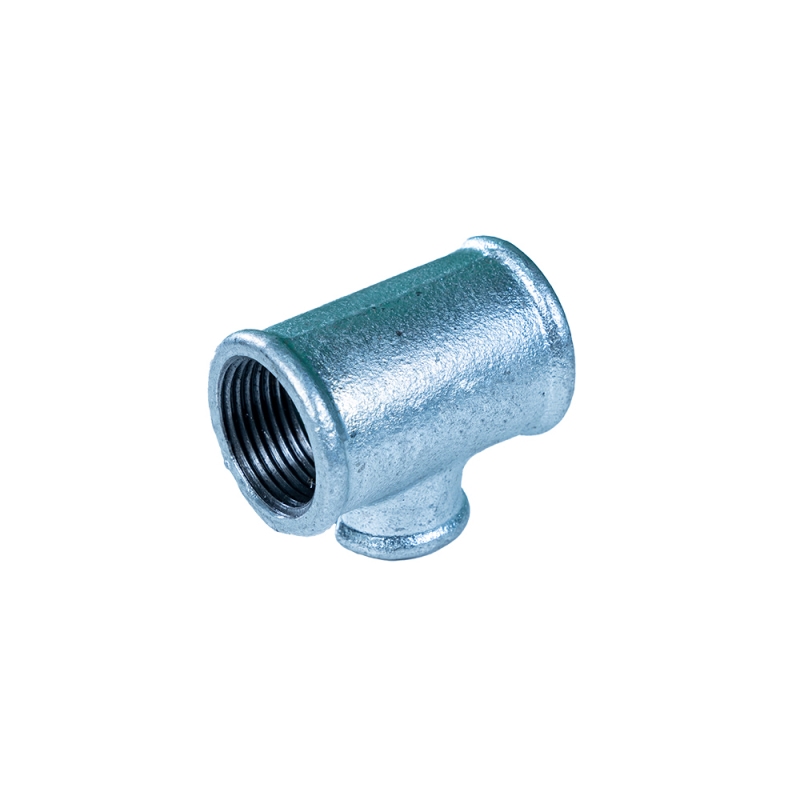

Malleable cast iron reducing tee(130R) has a T shape to get its name. The branch outlet has a smaller size than the main outlet, and it is used to create a branch pipeline to 90 degree direction.
Category150 Class BS / EN standard Beaded Malleable cast iron pipe fittings
Certificate: UL Listed / FM Approved
Surface: Black iron / hot dip galvanized
End: Beaded
Brand: P or OEM is acceptable
Standard: ISO49/ EN 10242, symbol C
Material: BS EN 1562, EN-GJMB-350-10
Thread: BSPT / NPT
W. pressure: 20 ~ 25 bar, ≤PN25
Tensile Strength: 300 MPA(Minimum)
Elongation:6% Minimum
Zinc Coating: Average 70 um, each fitting ≥63 um
Available Size:
| Item |
Size |
Weight |
| Number |
(Inch) |
KG |
| ERT20703 |
3/4 X3/4 X3/8 |
0.13 |
| ERT20705 |
3/4 X3/4 X 1/2 |
0.151 |
| ERT21005 |
1 X 1 X 1/2 |
0.213 |
| ERT21007 |
1 X 1 X 3/4 |
0.234 |
| ERT21205 |
1-1/4 X 1-1/4 X 1/2 |
0.306 |
| ERT21207 |
1-1/4 X 1-1/4 X 3/4 |
0.326 |
| ERT21210 |
1-1/4 X 1-1/4 X 1 |
0.356 |
| ERT21507 |
1-1/2 X 1-1/2 X 3/4 |
0.439 |
| ERT21510 |
1-1/2 X 1-1/2 X 1 |
0.475 |
| ERT22010 |
2 X2 X1 |
0.728 |
| ERT22015 |
2 X2 X 1-1/2 |
0.853 |
| ERT3070505 |
3/4 X1/2 X1/2 |
0.139 |
| ERT3070505 |
3/4 X1/2 X3/4 |
0.156 |
| ERT3100505 |
1 X1/2 X1/2 |
0.175 |
| ERT3100510 |
1 X 1/2 X1 |
0.221 |
| ERT3100705 |
1 X 3/4 X 1/2 |
0.184 |
| ERT3100707 |
1 X3/4 X3/4 |
0.197 |
| ERT3100710 |
1X3/4 X1 |
0.237 |
Keep every pipe fitting that our Clients’ received is qualified.
Q:Are you factory or trading company?
A:We are factory with +30 years history in casting field.
Q: What terms of payment do you support?
A: TTor L/C. 30% payment in advance, and the 70%balance would be
paid before shipment.
Q: How long is your delivery time?
A: 35 days upon receipt of advanced payment.
Q: lt is possible to get samples from your factory?
A: Yes. free samples will be provided.
Q: How many years the products guaranteed?
A: Minimum 1 years.
