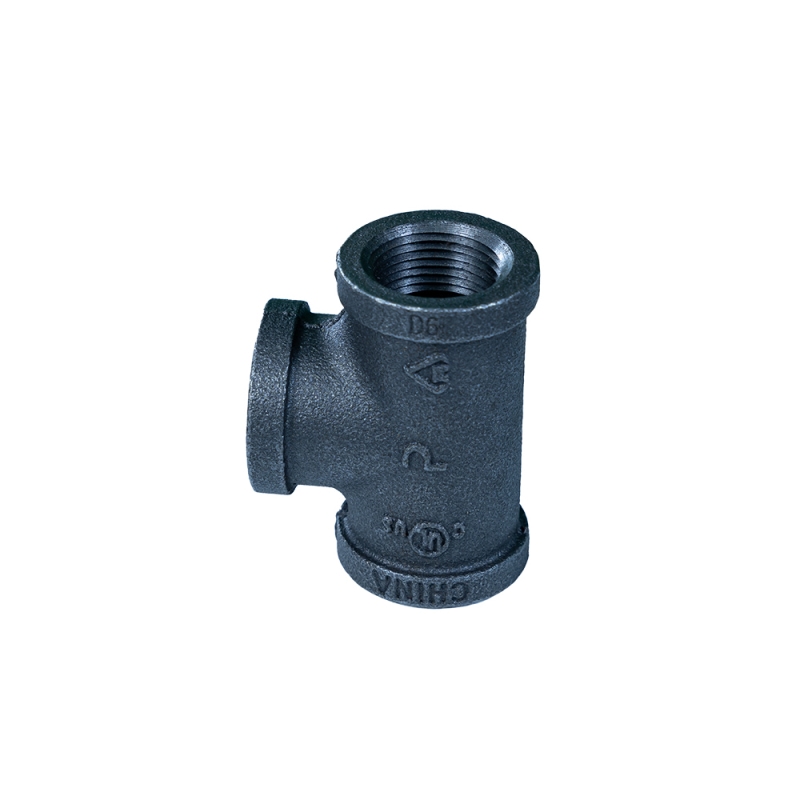

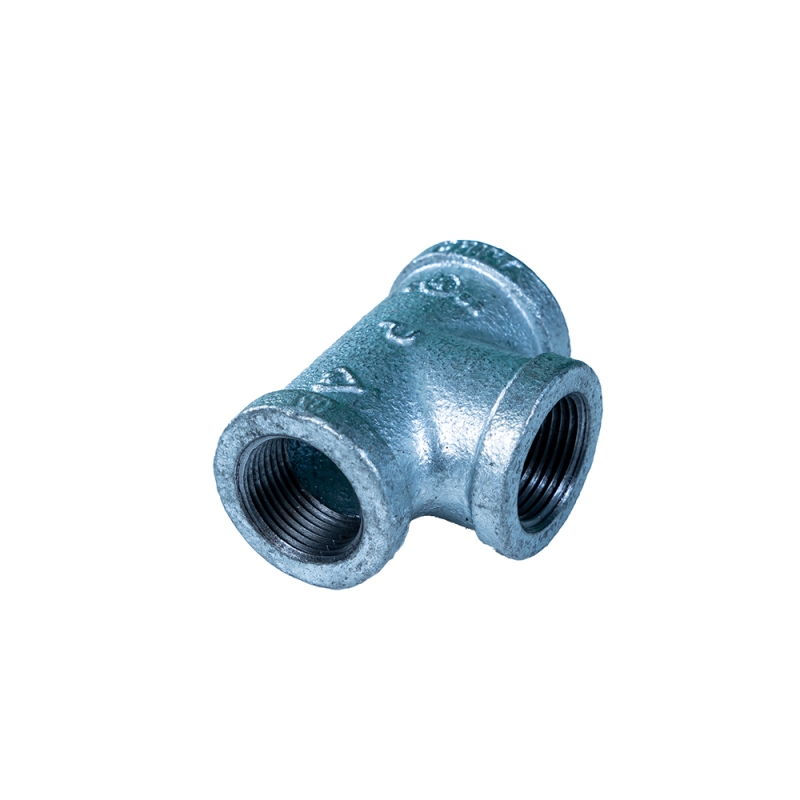

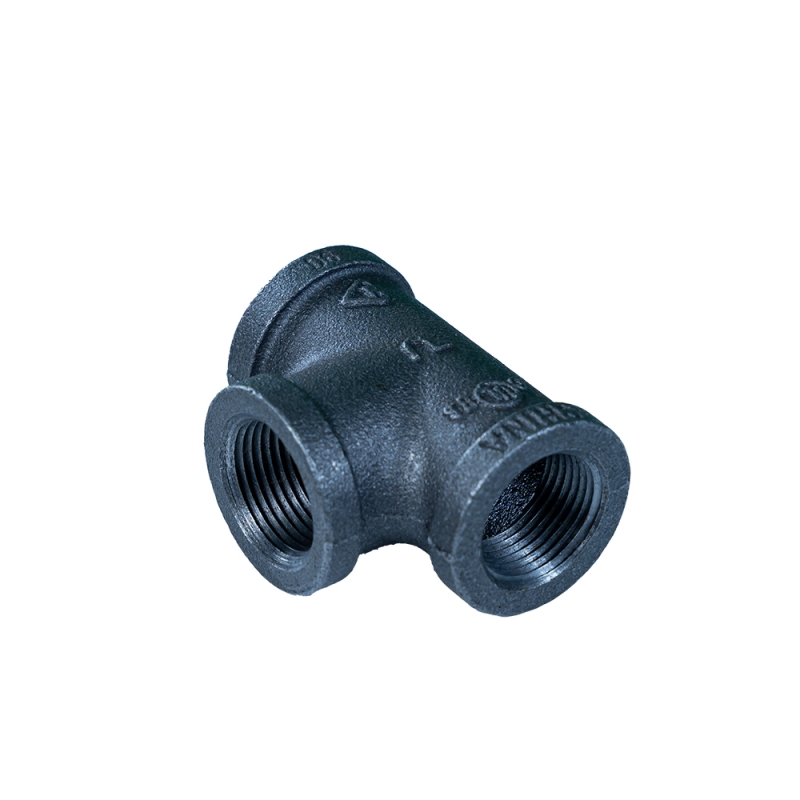

Brief Description
Tee hold two different piping components together to direct the flow of gases and liquids.
Tees are commonly used in residential, commercial, and industrial plumbing and heating systems to branch off the main flow of fluid or gas.
|
Item |
Size (inch) |
Dimensions |
Case Qty |
Special Case |
Weight |
||
|
Number |
A |
Master |
Inner |
Master |
Inner |
(Gram) |
|
| TEE01 | 1/8 | 17.5 |
600 |
120 |
480 |
120 |
46.1 |
| TEE02 | 1/4 | 20.6 |
420 |
70 |
300 |
75 |
65 |
| TEE03 | 3/8 | 24.1 |
250 |
50 |
180 |
45 |
101.5 |
| TEE05 | 1/2 | 28.5 |
180 |
60 |
120 |
40 |
150 |
| TEE07 | 3/4 | 33.3 |
120 |
40 |
70 |
35 |
223 |
| TEE10 | 1 | 38.1 |
80 |
20 |
40 |
20 |
344.5 |
| TEE12 | 1-1/4 | 44.5 |
48 |
12 |
28 |
14 |
564 |
| TEE15 | 1-1/2 | 49.3 |
36 |
12 |
24 |
12 |
706 |
| TEE20 | 2 | 57.3 |
24 |
12 |
16 |
8 |
1134 |
| TEE25 | 2-1/2 | 68.6 |
12 |
6 |
8 |
4 |
2080 |
| TEE30 | 3 | 78.2 |
8 |
4 |
6 |
6 |
3090 |
| TEE40 | 4 | 96.3 |
5 |
1 |
2 |
2 |
4962.5 |
| TEE50 | 5 | 114.3 |
2 |
2 |
2 |
2 |
9504 |
| TEE60 | 6 | 130.3 |
2 |
2 |
1 |
1 |
12982.5 |
| TEE80 | 8 | 165.1 |
1 |
1 |
1 |
1 |
35900 |
Brief Description
| Material: Malleable iron Technical: Casting |
| Type: TEE Shape: Equal Connection: Female |
| Place of Origin: Hebei, China |
| Brand Name: P |
| Working Pressure : 10kg/cm |
| standard: NPT,BSP |
| Size:1/8"-8" |
| Surface: Black; Hot-dipped galvanized;Certificate: UL,FM,NSF,ISO9000 |
